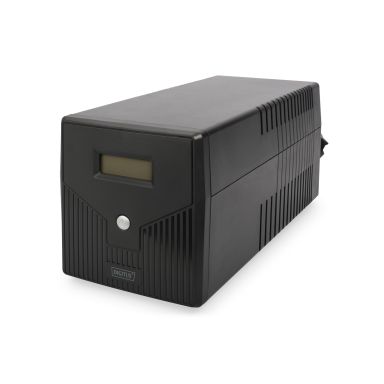

Digitus DN-170074 uninterruptible power supply (UPS) Line-Interactive 1000 VA 600 W 4 AC outlet(s)
In Stock
|
Call For Price
(0808 189 1246)
Power
Output voltage regulation
10%
Output power
600 W
Input operation voltage (min)
162 V
Input operation voltage (max)
290 V
Power factor
0.6
Output power capacity
0.6 kVA
Performance
Audible alarm modes
Alarm when on battery, Fault, Low battery alarm, Overload alarm
UPS topology
Line-Interactive
Waveform
Pseudo sine
Auto-restart
Yes
Automatic Voltage Regulation (AVR)
Yes
Number of output phases
1
Number of input phases
1
LED indicators
Yes
Surge protection
Yes
Surge protection features
Digital Subscriber Line (DSL), Modem, Network
Power protection features
Battery discharge, Overcharge, Overload
Noise level
40 dB
Audible alarm(s)
Yes
Transfer time (Line Mode to Battery Mode)
2 ms
Features
Output frequency
50 Hz
Country of origin
China
Audible alarm modes
Alarm when on battery, Fault, Low battery alarm, Overload alarm
UPS topology
Line-Interactive
Waveform
Pseudo sine
Output voltage regulation
10%
Auto-restart
Yes
Automatic Voltage Regulation (AVR)
Yes
Number of output phases
1
Number of input phases
1
Output power
600 W
Input operation voltage (min)
162 V
Input operation voltage (max)
290 V
Surge protection
Yes
Surge protection features
Digital Subscriber Line (DSL), Modem, Network
Power protection features
Battery discharge, Overcharge, Overload
Power factor
0.6
Noise level
40 dB
Audible alarm(s)
Yes
Output power capacity
0.6 kVA
Transfer time (Line Mode to Battery Mode)
2 ms
Input frequency
50 Hz
Ports & interfaces
USB port
Yes
Serial interface
Yes
Serial interface type
RS-232
AC outlets quantity
4 AC outlet(s)
Power plug
Type F
USB 2.0 ports quantity
1
Serial ports quantity
1
RS-232 ports
1
Ethernet LAN (RJ-45) ports
2
USB port type
USB Type-B
Battery
Number of batteries supported
2
Battery voltage
12 V
Battery capacity
7 Ah
Cold start
Yes
Battery recharge time(90%)
6 h
Design
Country of origin
China
Form factor
Tower
LED indicators
Yes
Product colour
Black
Display type
LCD
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Operating relative humidity (H-H)
0 - 95%
Technical details
Output frequency
50 Hz
Harmonized System (HS) code
85078000
Weight & dimensions
Package width
235 mm
Package depth
405 mm
Package height
192 mm
Weight
7.8 kg
Width
150 mm
Package weight
8.1 kg
Height
162 mm
Depth
338 mm
Package volume
18273.6 cm³
Packaging data
Package volume
18273.6 cm³
Package width
235 mm
Package depth
405 mm
Package height
192 mm
Package weight
8.1 kg
Logistics data
Harmonized System (HS) code
85078000
UK Trade Tariff code
85044085
Other features
Output connections
4 x CEE 7/7
Nominal output voltage
230 V
Nominal input voltage
230 V
