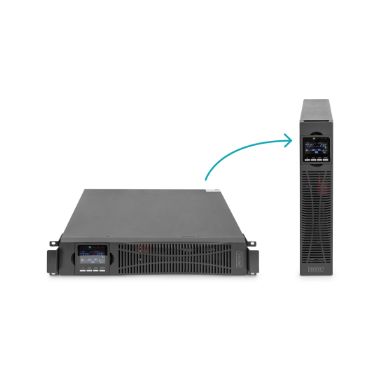

Digitus OnLine UPS system, 10 kVA/ 10 kW
In Stock
|
$1421.29
$1705.55 (Inc. VAT)
Power
Output voltage regulation
5%
Output frequency regulation
1 Hz
Output power
10000 W
Input operation voltage (min)
120 V
Input operation voltage (max)
276 V
Output operation voltage (min)
208 V
Output operation voltage (max)
240 V
Efficiency
93.5%
Emergency Power Off (EPO)
Yes
Power factor
0.99
Output voltage Total Harmonic Distortion (THD)
5%
Input current Total Harmonic Distortion (THD)
5%
Crest factor
3:1
Output power capacity
6 kVA
Charging current
1 A
ECO mode
Yes
Performance
UPS topology
Double-conversion (Online)
Waveform
Pure sine
Number of output phases
1
Number of input phases
1
Response time
20 ms
Noise level
55 dB
Features
Output frequency
50/60 Hz
Country of origin
China
UPS topology
Double-conversion (Online)
Waveform
Pure sine
Output voltage regulation
5%
Output frequency regulation
1 Hz
Number of output phases
1
Number of input phases
1
Response time
20 ms
Output power
10000 W
Input operation voltage (min)
120 V
Input operation voltage (max)
276 V
Output operation voltage (min)
208 V
Output operation voltage (max)
240 V
Efficiency
93.5%
Emergency Power Off (EPO)
Yes
Power factor
0.99
Output voltage Total Harmonic Distortion (THD)
5%
Noise level
55 dB
Input current Total Harmonic Distortion (THD)
5%
Crest factor
3:1
Output power capacity
6 kVA
ECO mode
Yes
Input frequency
45/66 Hz
Charging current
1 A
Ports & interfaces
Emergency Power Off (EPO) connector
Yes
USB port
Yes
Power plug
Hardwire
USB 2.0 ports quantity
1
USB port type
USB Type-B
Battery
Number of batteries supported
20
Battery recharge time
8 h
Hot-swap battery
Yes
Cold start
Yes
Charging current
1 A
Design
Country of origin
China
International Protection (IP) code
IP20
Rack capacity
2U
Form factor
Rackmount/Tower
Product colour
Black
Cooling type
Active
Built-in fan
Yes
Housing material
Metal
Display type
LCD + LED
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Technical details
Output frequency
50/60 Hz
Harmonized System (HS) code
85078000
Cooling
Cooling type
Active
Built-in fan
Yes
Weight & dimensions
Package width
615 mm
Package depth
765 mm
Weight
18 kg
Width
440 mm
Package weight
20.6 kg
Height
86.5 mm
Depth
620 mm
Package volume
100682 cm³
Packaging data
Manual
Yes
Package volume
100682 cm³
Package width
615 mm
Package depth
765 mm
Package weight
20.6 kg
Logistics data
Harmonized System (HS) code
85078000
UK Trade Tariff code
85044086
Other features
Size (imperial)
48.3 cm (19")
Packaging content
Manual
Yes
Digitus OnLine UPS system, 10 kVA/ 10 kW
