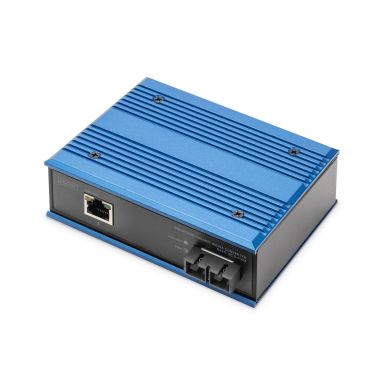

Digitus Industrial Gigabit Media Converter RJ45, SC 0.5km
In Stock
|
$98.80
$118.56 (Inc. VAT)
Network
Fiber optic connector
SC
Data transfer rate
1000 Mbit/s
Copper ethernet cabling technology
10BASE-T, 100BASE-T, 1000BASE-T
Fiber ethernet cabling technology
1000BASE?SX
Converter input interface
10Base-T, 100Base-T, 1000Base-T
Ethernet LAN data rates
10,100,1000 Mbit/s
Ethernet interface type
Gigabit Ethernet
Converter output interface
1000Base-SX
Auto MDI/MDI-X
Yes
Maximum data transfer rate
1000 Mbit/s
Technical details
International Protection (IP) code
IP40
Housing material
Metal
Wavelength
850 nm
Maximum transfer distance
500 m
Fiber mode structure
Multi-mode
Fiber cable diameters supported (core/cladding)
50/125,62.5/125 µm
Internal
No
Data transfer rate
1000 Mbit/s
Performance
Digital Diagnostics Monitoring (DDM)
No
Wavelength
850 nm
Maximum transfer distance
500 m
Fiber mode structure
Multi-mode
Fiber cable diameters supported (core/cladding)
50/125,62.5/125 µm
Ports & interfaces
Connectivity technology
Wired
Ethernet LAN (RJ-45) ports
1
Fiber ports quantity
2
Fiber optic connector
SC
Indication
LED indicators
Activity, Status
Design
DIN rail mounting
Yes
Country of origin
China
International Protection (IP) code
IP40
Housing material
Metal
LED indicators
Activity, Status
Product colour
Black, Blue
Internal
No
Power
Power over Ethernet (PoE)
No
Input voltage
12 - 48 V
Power consumption (typical)
3 W
Management features
Digital Diagnostics Monitoring (DDM)
No
Colour
Product colour
Black, Blue
Weight & dimensions
Width
118 mm
Depth
92.4 mm
Height
40 mm
Package volume
1202.85 cm³
Package depth
54 mm
Package width
135 mm
Package height
165 mm
Package weight
558.333 g
Operational conditions
Operating temperature (T-T)
-40 - 80 °C
Packaging data
Package volume
1202.85 cm³
Package depth
54 mm
Package width
135 mm
Package height
165 mm
Package weight
558.333 g
Packaging content
Quick installation guide
Yes
Logistics data
UK Trade Tariff code
85176200
