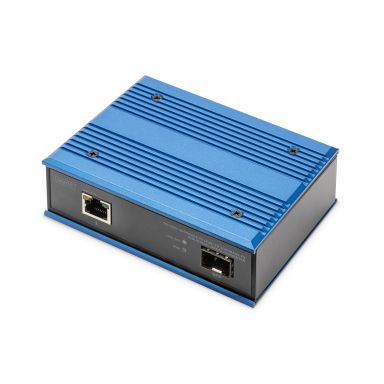

Digitus 10/100/1000Base-TX (PoE) to 1000Base-FX Industrial Media Converter
In Stock
|
$99.05
$118.86 (Inc. VAT)
Network
Fiber optic connector
FX
Data transfer rate
1000 Mbit/s
Cable types supported
Cat3, Cat4, Cat5
Copper ethernet cabling technology
10BASE-T, 1000BASE-T, 100BASE-TX, 1000BASE-TX, 100BASE-T
Fiber ethernet cabling technology
1000BASE-FX
Converter input interface
10Base-T, 1000Base-T, 100Base-TX, 1000Base-TX, 100Base-T
Networking standards
IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Ethernet LAN data rates
10,100,1000 Mbit/s
Ethernet interface type
Gigabit Ethernet
Duplex system
Full, Half
Converter output interface
1000Base-FX
Auto MDI/MDI-X
Yes
Maximum data transfer rate
1000 Mbit/s
Technical details
International Protection (IP) code
IP40
Housing material
Aluminium
Buffer size
1200 KB
Internal
No
Data transfer rate
1000 Mbit/s
Performance
Digital Diagnostics Monitoring (DDM)
No
Buffer size
1200 KB
Mean time between failures (MTBF)
300000 h
Ports & interfaces
Connectivity technology
Wired
Ethernet LAN (RJ-45) ports
1
Fiber ports quantity
1
Fiber optic connector
FX
Indication
LED indicators
Link, Power
Design
DIN rail mounting
Yes
Country of origin
China
International Protection (IP) code
IP40
Housing material
Aluminium
LED indicators
Link, Power
Product colour
Black, Blue
Internal
No
Endurance
Mean time between failures (MTBF)
300000 h
Power
Power over Ethernet (PoE)
Yes
Total Power over Ethernet (PoE) budget
30 W
Input voltage
48 - 57 V
Power consumption (typical)
3 W
Management features
Digital Diagnostics Monitoring (DDM)
No
Colour
Product colour
Black, Blue
Weight & dimensions
Width
118 mm
Depth
92.4 mm
Weight
400 g
Height
40 mm
Package volume
1202.85 cm³
Package depth
54 mm
Package width
135 mm
Package height
165 mm
Package weight
558.333 g
Operational conditions
Operating temperature (T-T)
-40 - 80 °C
Storage temperature (T-T)
-40 - 80 °C
Packaging data
Package volume
1202.85 cm³
Package depth
54 mm
Package width
135 mm
Package height
165 mm
Package weight
558.333 g
Packaging content
Quick installation guide
Yes
Logistics data
UK Trade Tariff code
85176200
Digitus 10/100/1000Base-TX (PoE) to 1000Base-FX Industrial Media Converter
