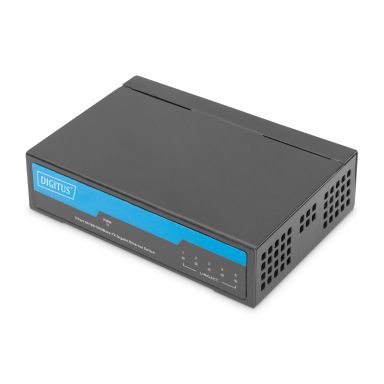

Digitus 5 Port Gigabit Switch, Unmanaged

Copper ethernet cabling technology

1000BASE-TX

Switching optical modules type

Gigabit Ethernet

Basic switching RJ-45 Ethernet ports quantity

5

Basic switching RJ-45 Ethernet ports type

Gigabit Ethernet (10/100/1000)

VLAN support

No

Product colour

Black

Switch type

Unmanaged

Cloud-managed

No

Copper ethernet cabling technology

1000BASE-TX

Networking standards

IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u

Full duplex

Yes

VLAN support

No

Flow control support

Yes

Ethernet LAN data rates

10,100,1000 Mbit/s

Auto MDI/MDI-X

Yes

Switching optical modules type

Gigabit Ethernet

MAC address table

2000 entries

Transmission method

Store & Forward

Forwarding rate

0.1488 Mpps

Country of origin

China

Product colour

Black

LED indicators

Activity, Link, Power

Vandal-proof

No

Suitable for outdoor use

No

Harmonized System (HS) code

85176990

LED indicators

Activity, Link, Power

Power consumption (max)

3 W

AC input voltage

100 - 240 V

AC input frequency

50 - 60 Hz

Input current

1 A

DC input voltage

5 V

Power over Ethernet (PoE)

No

Storage temperature (T-T)

-10 - 70 °C

Operating temperature (T-T)

0 - 40 °C

Operating relative humidity (H-H)

10 - 90%

Width

69 mm

Depth

92 mm

Height

25 mm

Weight

180 g

Package volume

1852.2 cm³

Package width

189 mm

Package depth

70 mm

Package height

140 mm

Package weight

130 g

Cables included

Coaxial

Harmonized System (HS) code

85176990

UK Trade Tariff code

85176200

Ethernet LAN data rates

10,100,1000 Mbit/s

Ethernet interface type

Gigabit Ethernet

Country of origin

China

Cables included

Coaxial
