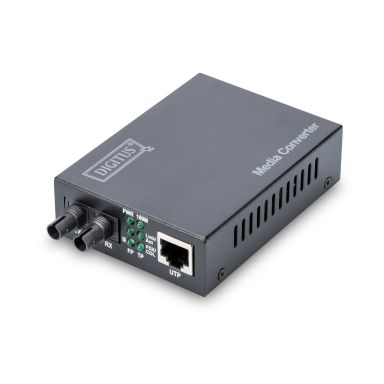

Digitus Fast Ethernet Media Converter, RJ45 / ST
In Stock
|
$35.12
$42.14 (Inc. VAT)
Network
Fiber optic connector
ST
Converter input interface
100Base-TX
Networking standards
IEEE 802.3, IEEE 802.3u
Ethernet LAN data rates
10,100 Mbit/s
Ethernet interface type
Fast Ethernet
Duplex system
Full, Half
Converter output interface
100Base-FX
Auto MDI/MDI-X
Yes
Technical details
Wavelength
1310 nm
Maximum transfer distance
2000 m
Fiber mode structure
Multi-mode
Fiber cable diameters supported (core/cladding)
50/125,62.5/125 µm
Buffer size
128 KB
Tx power (min)
-22 dBmW
Tx power (max)
-12 dBmW
Transmission distance (max)
2 km
Rx power (min)
-30 dBmW
Internal
Yes
Harmonized System (HS) code
85176990
Weight & dimensions
Dimensions (WxDxH)
95 x 70 x 26 mm
Weight
200 g
Package volume
2086.56 cm³
Package depth
60 mm
Package width
216 mm
Package weight
500 g
Ports & interfaces
Connectivity technology
Wired
Ethernet LAN (RJ-45) ports
1
Fiber ports quantity
1
Fiber optic connector
ST
DC-in jack
Yes
Indication
LED indicators
Activity, Link, Power
Performance
Wavelength
1310 nm
Maximum transfer distance
2000 m
Fiber mode structure
Multi-mode
Fiber cable diameters supported (core/cladding)
50/125,62.5/125 µm
Buffer size
128 KB
Tx power (min)
-22 dBmW
Tx power (max)
-12 dBmW
Rx power (min)
-30 dBmW
Design
Country of origin
China
LED indicators
Activity, Link, Power
Product colour
Black
Internal
Yes
Power
Power over Ethernet (PoE)
No
Input voltage
5 V
Power consumption (typical)
2.5 W
External power adapter
Yes
Colour
Product colour
Black
Operational conditions
Operating temperature (T-T)
0 - 55 °C
Packaging data
Package volume
2086.56 cm³
Package depth
60 mm
Package width
216 mm
Package weight
500 g
Packaging content
User guide
Yes
Logistics data
Harmonized System (HS) code
85176990
UK Trade Tariff code
85176200
Other features
Transmission distance (max)
2 km
Dimensions (WxDxH)
95 x 70 x 26 mm
Digitus Fast Ethernet Media Converter, RJ45 / ST
