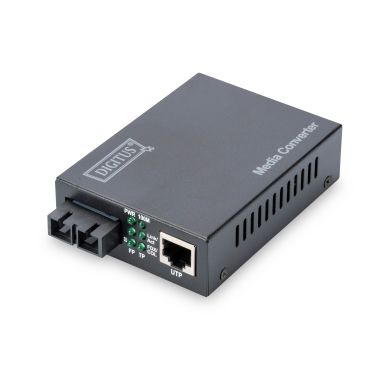

Digitus Fast Ethernet Media Converter, RJ45 / SC
In Stock
|
$32.50
$39.00 (Inc. VAT)
Network
Fiber optic connector
SC
Converter input interface
100Base-TX
Networking standards
IEEE 802.3, IEEE 802.3u
Ethernet LAN data rates
10,100 Mbit/s
Ethernet interface type
Fast Ethernet
Duplex system
Full, Half
Converter output interface
100Base-FX
Auto MDI/MDI-X
Yes
Technical details
Wavelength
1310 nm
Maximum transfer distance
20000 m
Fiber mode structure
Single-mode
Fiber cable diameters supported (core/cladding)
9/125 µm
Buffer size
128 KB
Tx power (min)
-15 dBmW
Tx power (max)
-8 dBmW
Transmission distance (max)
20 km
Rx power (min)
-38 dBmW
Internal
Yes
Harmonized System (HS) code
85176990
Weight & dimensions
Dimensions (WxDxH)
95 x 70 x 26 mm
Weight
200 g
Package volume
2086.56 cm³
Package depth
60 mm
Package width
216 mm
Package weight
450 g
Ports & interfaces
Connectivity technology
Wired
Ethernet LAN (RJ-45) ports
1
Fiber ports quantity
1
Fiber optic connector
SC
DC-in jack
Yes
Indication
LED indicators
Activity, Link, Status
Performance
Wavelength
1310 nm
Maximum transfer distance
20000 m
Fiber mode structure
Single-mode
Fiber cable diameters supported (core/cladding)
9/125 µm
Buffer size
128 KB
Tx power (min)
-15 dBmW
Tx power (max)
-8 dBmW
Rx power (min)
-38 dBmW
Design
Country of origin
China
LED indicators
Activity, Link, Status
Product colour
Black
Internal
Yes
Power
Power over Ethernet (PoE)
No
Input voltage
5 V
Power consumption (typical)
2.5 W
External power adapter
Yes
Colour
Product colour
Black
Operational conditions
Operating temperature (T-T)
0 - 55 °C
Packaging data
Package volume
2086.56 cm³
Package depth
60 mm
Package width
216 mm
Package weight
450 g
Packaging content
User guide
Yes
Logistics data
Harmonized System (HS) code
85176990
UK Trade Tariff code
85176200
Other features
Transmission distance (max)
20 km
Dimensions (WxDxH)
95 x 70 x 26 mm
