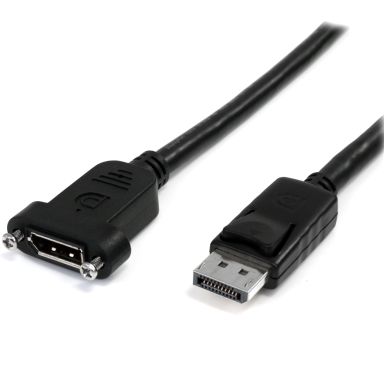

StarTech.com 3 ft 20 pin DisplayPort Extension Panel Mount Cable - M/F
In Stock
|
Call For Price (0808 189 1246)
Features
Latching connectors
Yes
Cable rating
CMG (CM)
Number of conductors
20
Product colour
Black
Cable length
0.9 m
Connector 1
DisplayPort
Connector 2
DisplayPort
Connector 1 gender
Male
Connector 2 gender
Female
Connector contacts plating
Nickel
Jacket material
Polyvinyl chloride (PVC)
AWG wire size
28
DisplayPort version
1.2
Bandwidth
21600 MB/s
Maximum resolution
4096 x 2160 pixels
Plug and Play
Yes
Maximum refresh rate
60 Hz
Multi-Stream Transport (MST)
Yes
Connector 1 form factor
Straight
Connector 2 form factor
Straight
Operational conditions
Operating temperature (T-T)
-10 - 40 °C
Storage temperature (T-T)
-10 - 80 °C
Operating relative humidity (H-H)
0 - 85%
Sustainability
Sustainability certificates
CE- RoHS
Packaging data
Package weight
88 g
Weight
83 g
Package width
200 mm
Package depth
220 mm
Package height
25 mm
Weight & dimensions
Package weight
88 g
Weight
83 g
Package width
200 mm
Package depth
220 mm
Package height
25 mm
Technical details
Sustainability certificates
CE- RoHS
Harmonized System (HS) code
84733080
Logistics data
Products per master (outer) case
120 pc(s)
Master (outer) case width
330 mm
Master (outer) case length
500 mm
Master (outer) case height
250 mm
Harmonized System (HS) code
84733080
StarTech.com 3 ft 20 pin DisplayPort Extension Panel Mount Cable - M/F
| Length | 22 cm |
| Width | 20 cm |
| Height | 2.5 cm |
| Weight | 0.09 kgs |
