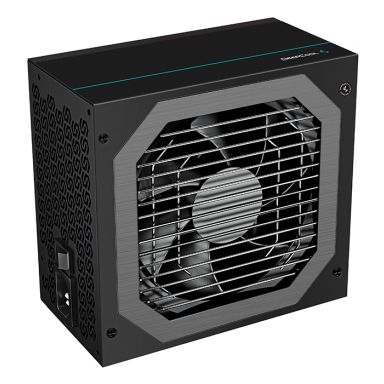

DeepCool DQ850-M-V2L power supply unit 850 W 20+4 pin ATX Black
In Stock
|
$87.47
$104.96 (Inc. VAT)
Cooling
Fan diameter
12 cm
Number of fans
1 fan(s)
Fan location
Top
Performance
On/off switch
Yes
80 PLUS certification
80 PLUS Gold
Purpose
PC
ATX version
2.31
Mean time between failures (MTBF)
100000 h
Design
80 PLUS certification
80 PLUS Gold
Product colour
Black
Fan diameter
12 cm
On/off switch
Yes
Number of fans
1 fan(s)
Fan location
Top
Power
Total power
850 W
AC input voltage
100 - 240 V
AC input frequency
47 - 63 Hz
Input current
12 A
Power Factor Correction (PFC) type
Active
Combined power (+3.3V)
110 W
Combined power (+12V)
846 W
Combined power (+5V)
110 W
Combined power (-12V)
3.6 W
Combined power (+5Vsb)
12.5 W
Max output current (+3.3V)
20 A
Max output current (+12V)
70.5 A
Max output current (+5V)
20 A
Max output current (-12V)
0.3 A
Max output current (+5Vsb)
2.5 A
Power protection features
Over current, Over power, Over voltage, Short circuit, Under voltage
Hold time
16 ms
Efficiency
90%
Ports & interfaces
Motherboard power cable length
55 cm
SATA power cable length
550,700,850,1000 mm
Peripheral (Molex) power cable length
450,600 mm
PCI Express power cable length
50 cm
CPU power cable length
70 cm
Motherboard power connector
20+4 pin ATX
Number of SATA power connectors
4
Peripheral (Molex) power connectors (4-pin)
2
PCI Express power connectors (6+2 pin)
2
ATX power connector (20+4 pin)
Yes
Cabling type
Fully-Modular
EPS power connector (4+4 pin)
Yes
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Packaging content
Cables included
CPU, PCIe, Peripheral (Molex), SATA
Weight & dimensions
Width
150 mm
Depth
160 mm
Height
86 mm
Packaging data
Cables included
CPU, PCIe, Peripheral (Molex), SATA
Package type
Box
Certificates
80 PLUS certification
80 PLUS Gold
DeepCool DQ850-M-V2L power supply unit 850 W 20+4 pin ATX Black
