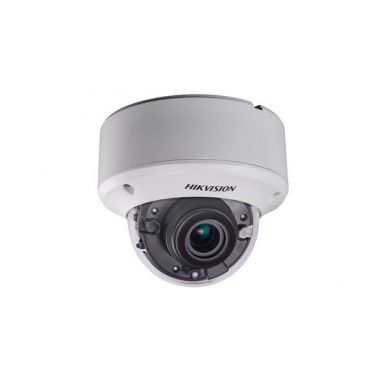

Hikvision Digital Technology DS-2CC52D9T-AVPIT3ZE security camera IP security camera Indoor & outdoor Dome Ceiling 1920 x 1080 pixels
0 Reviews
| Add your review
In Stock
|
Call For Price
(0808 189 1246)
| SPECIFICATIONS | |
|---|---|
| Product Description | Hikvision Turbo HD Camera DS-2CC52D9T-AVPIT3ZE - surveillance camera |
| Device Type | Surveillance camera - fixed dome - outdoor indoor - vandal / weatherproof |
| Dimensions (WxDxH) | 5.7 in x 5.7 in x 4.9 in |
| Weight | 4.41 lbs |
| Connectivity Technology | Wired |
| Camera | Color - Day&Night - NTSC PAL |
| Optical Zoom | 4.3 x |
| Frame Rate (max) | 30 frames per second |
| Motion Detection | Yes |
| Video Modes | 1080p 1080/30p 1080/25p |
| Optical Sensor Type | PS CMOS 2 MP |
| Focal Length Control | Vari-focal |
| Focal Length | 2.8 mm - 12 mm |
| Lens Mounting | F14 mount |
| Lens Iris | Auto iris |
| Panning Range (degree) | 0 to 355 |
| Tilting Range (degree) | 0 to 75 |
| Interfaces | Composite video AHD |
| Voltage | DC 12 V / AC 24 V / PoC |
| Environmental Parameters (operating) | -40 °F - 140 °F; 0 - 90% (non-condensing) relative humidity |
| General | |
| Device Type | Surveillance camera |
| Connectivity Technology | Wired |
| Width | 5.7 in |
| Depth | 5.7 in |
| Height | 4.9 in |
| Weight | 4.41 lbs |
| Camera | |
| Video Format | NTSC PAL |
| Motion Detection | Yes |
| Video Modes | 1080p 1080/30p 1080/25p |
| Exposure Range | 1/25 sec - 1/50000 sec |
| Minimum Illumination | 0.003 lux F1.2 - AGC on ¦ 0 lux - infrared LEDs on |
| Infrared LEDs | Yes |
| Infrared Distance | 131 ft |
| Frame Rate (max) | 30 frames per second |
| Image Sensor | |
| Type | 2 MP PS CMOS |
| Effective Pixels | 1920 x 1080 |
| Lens Construction | |
| Type | F14 mount - vari-focal |
| Optical Zoom | 4.3 x |
| Focal Length | 2.8 mm - 12 mm |
| Lens Iris | Auto iris |
| Horizontal Field of View (degree) | 32.1 - 98 |
| Panning | |
| Range (degree) | 0 to 355 |
| Tilting | |
| Range (degree) | 0 to 75 |
| Interfaces | |
| Video | Composite video AHD |
| Expansion / Connectivity | |
| Ports | AHD ¦ Composite video - BNC |
| Miscellaneous | |
| Compliant Standards | IP67 IK10 |
| Power | |
| Power Requirements | DC 12 V / AC 24 V / PoC |
| Power Device | 6 Watt |
| Environmental Parameters | |
| Min Operating Temperature | -40 °F |
| Max Operating Temperature | 140 °F |
| Relative Humidity (operating) | 0 - 90% (non-condensing) |
Hikvision Digital Technology DS-2CC52D9T-AVPIT3ZE security camera IP security camera Indoor & outdoor Dome Ceiling 1920 x 1080 pixels
| Length | 5.7 cm |
| Width | 5.7 cm |
| Height | 4.9 cm |
| Weight | 1.000000 kgs |
