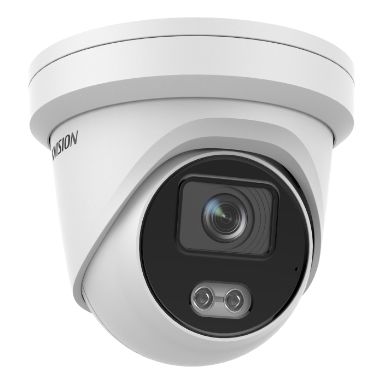

Hikvision Digital Technology DS-2CD2347G2-LU(2.8MM)(C) security camera IP security camera Indoor & o
In Stock
|
Call For Price
(0808 189 1246)
Performance
Number of languages
33
Languages support
Multi
Type
IP security camera
Connectivity technology
Wired
Placement supported
Indoor & outdoor
Wide Dynamic Range (WDR)
Yes
Day/night mode
Yes
Certification
FCC SDoC (47 CFR Part 15- Subpart B); CE-EMC (EN 55032: 2015- EN 61000-3-2: 2014- EN 61000-3-3: 2013- EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC VoC (ICES-003: Issue 6- 2016); KC (KN 32: 2015- KN 35: 2015) UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013- IEC 62368-1:2014); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013- IEC 62368-1:2014); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015); LOA (IEC/EN 60950-1) CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
Design
Form factor
Dome
Product colour
White
Mounting type
Ceiling/wall
Protection features
Dust resistant- Water resistant
International Protection (IP) code
IP67
Housing material
Aluminium
Camera
Viewing angle- diagonal
134°
Viewing angle- horizontal
112°
Viewing angle- vertical
61°
Tilt angle range
0 - 75°
Pan range
0 - 360°
Angle of rotation
360°
Camera shutter speed
1/3 - 1/100000 s
Progressive scan
Yes
Image sensor
Sensor type
CMOS
Progressive scan
Yes
Optical sensor size
25.4 / 1.8 mm (1 / 1.8")
Number of sensors
1
Lens system
Number of lenses
1
Maximum aperture number
1
Recognize distance (wide)
11 m
Observe distance (wide)
23 m
Identify distance (wide)
2 m
Detect distance (wide)
58 m
Fixed focal length
2.8 mm
Night vision
Night vision
Yes
Night vision distance
30 m
LED type
IR
Video
Noise reduction
Yes
Image quality adjustment
Brightness- Contrast- Saturation
Privacy masking
Yes
Gain control type
Auto
Region of Interest (ROI) encoding
Yes
Highlight Compensation (HLC)
Yes
Bit rate control
Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
Bit rate
32 Kbps - 8 Mbps
Back Light Compensation (BLC)
Yes
Noise reduction technology
3D noise reduction
Video compression formats
H.264-H.264+-H.265-H.265+
Maximum resolution
2688 x 1520 pixels
Video formats supported
H.264-H.264+-H.265-H.265+
Supported graphics resolutions
640 x 360-640 x 480 (VGA)-1280 x 720 (HD 720)-1920 x 1080 (HD 1080)-2688 x 1520
Supported video modes
360p-480p-720p-1080p-1520p
Frame rate
30 fps
Video streaming
Yes
Total megapixels
4 MP
Audio
Voice codecs
AAC-G.711alaw-G.711ulaw-G.722.1-G.726-MP2L2-PCM
Signal-to-Noise Ratio (SNR)
52 dB
Built-in microphone
Yes
Sample rates
8 - 48 kHz
Bit rate range
64 - 192 Kbit/s
Network
Ethernet interface type
Fast Ethernet
Networking standards
IEEE 802.1x-IEEE 802.3af
Quality of Service (QoS) support
Yes
Number of users
32 user(s)
Ethernet LAN
Yes
Supported network protocols
TCP/IP- ICMP- HTTP- HTTPS- FTP- DHCP- DNS- DDNS- RTP- RTSP- NTP- UPnP- SMTP- IGMP- 802.1X- QoS- IPv4- IPv6- UDP- Bonjour- SSL/TLS- PPPoE- SNMP- ARP
Storage
Maximum memory card size
256 GB
Card reader integrated
Yes
Built-in HDD
No
Compatible memory cards
MicroSD (TransFlash)- MicroSDHC- MicroSDXC
Ports & interfaces
Ethernet LAN (RJ-45) ports
1
Connectivity technology
Wired
Security
Video motion detection
Yes
Security algorithms
HTTPS
Password protection type
User
IP address filtering
Yes
Active tampering alarm
Yes
Mirror
Yes
Heartbeat
Yes
Anti-flicker
Yes
Management features
Web browser
Yes
Reset button
Yes
Behavior analysis
Intrusion detection- Line crossing detection- Region entrance detection- Region exiting detection
Power
Power source type
DC- PoE
Power consumption (max)
6.6 W
Power consumption (Power over Ethernet (PoE))
7.6 W
DC output voltage
12
DC output current
0.55 A
Certificates
Certification
FCC SDoC (47 CFR Part 15- Subpart B); CE-EMC (EN 55032: 2015- EN 61000-3-2: 2014- EN 61000-3-3: 2013- EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC VoC (ICES-003: Issue 6- 2016); KC (KN 32: 2015- KN 35: 2015) UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013- IEC 62368-1:2014); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013- IEC 62368-1:2014); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015); LOA (IEC/EN 60950-1) CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
Operational conditions
Operating temperature (T-T)
-30 - 60 °C
Storage temperature (T-T)
-30 - 60 °C
Operating relative humidity (H-H)
0 - 95%
Storage relative humidity (H-H)
0 - 95%
Weight & dimensions
Height
125.2 mm
Diameter
13.8 cm
Weight
750 g
Package width
170 mm
Package height
150 mm
Package depth
170 mm
Package weight
1.05 kg
Packaging content
Number of cameras
1
Other features
Video compression formats
H.264-H.264+-H.265-H.265+
Hikvision Digital Technology DS-2CD2347G2-LU(2.8MM)(C) security camera IP security camera Indoor & o
