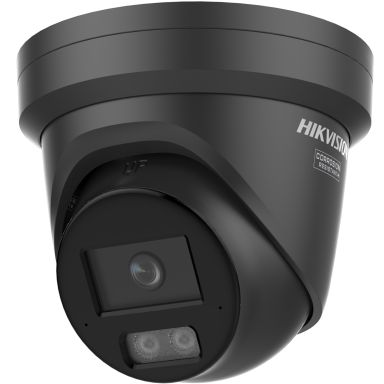

Hikvision HIK DS-2CD2347G3-LI2UY(2.8MM)(BLACK)

Infrared (IR) cut-off filter

Yes

Number of languages

33

Languages support

Multi

Type

IP security camera

Connectivity technology

Wired

Placement supported

Indoor & outdoor

Wide Dynamic Range (WDR)

Yes

Day/night mode

Yes

Dynamic range

130 dB

Form factor

Turret

Product colour

Black

Mounting type

Ceiling/Wall/Pole

Protection features

Corrosion resistant, Dust resistant, Water resistant

International Protection (IP) code

IP67

Housing material

Metal

Minimum illumination

0 lx

Tilt angle range

0 - 75°

Pan range

0 - 360°

Angle of rotation

360°

Lens viewing angle, horizontal

111.1°

Lens viewing angle, vertical

57.6°

Lens viewing angle, diagonal

138.5°

Number of Privacy masking areas

4

Progressive scan

Yes

Sensor type

CMOS

Progressive scan

Yes

Optical sensor size

25.4 / 1.8 mm (1 / 1.8")

Number of lenses

1

Maximum aperture number

1

Detect distance

61 m

Observe distance

24 m

Recognize distance

12 m

Identify distance

6 m

Fixed focal length

2.8 mm

Night vision

Yes

Night vision distance

30 m

LED type

IR/White

Infra-red wavelength

850 nm

Noise reduction

Yes

Image quality adjustment

Brightness, Contrast, Saturation, Sharpness

Image stabilizer

Yes

Region of Interest (ROI) encoding

Yes

Highlight Compensation (HLC)

Yes

Bit rate control

Constant Bit Rate (CBR)/Variable Bit Rate (VBR)

Bit rate

32 Kbps - 8 Mbps

Back Light Compensation (BLC)

Yes

Noise reduction technology

3D noise reduction

Video compression formats

H.264, H.264+, H.265, H.265+, M-JPEG

Maximum resolution

2688 x 1520 pixels

Supported graphics resolutions

640 x 360, 640 x 480 (VGA), 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2688 x 1520

Frame rate

30 fps

Total megapixels

4 MP

Signal-to-Noise Ratio (SNR)

52 dB

Built-in microphone

Yes

Audio formats supported

AAC-LC, G.711, G.722.1, G.726, MP2L2, MP3, PCM

Sample rates

8 - 48 kHz

Bit rate range

8 - 320 Kbit/s

Number of microphones

2

Bluetooth

No

Networking standards

IEEE 802.1x, IEEE 802.3af

Number of users

32 user(s)

Ethernet LAN

Yes

Wi-Fi

No

Supported network protocols

TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets, SRTP, SFTP

User access level

Administrator, Operator, User

Number of simultaneous live view channels

6 channels

Maximum memory card size

512 GB

Card reader integrated

Yes

Built-in HDD

No

Compatible memory cards

MicroSD (TransFlash), MicroSDHC, MicroSDXC

Ethernet LAN (RJ-45) ports

1

Connectivity technology

Wired

Intelligent Video Surveillance (IVS) system features

Face detection, Human detection, Intrusion, Line crossing detection, Region entrance detection, Region exiting detection, Scene change, Vehicle detection

Video motion detection

Yes

Security algorithms

EAP-LEAP, EAP-MD5, EAP-TLS, HTTPS, TLS

IP address filtering

Yes

HTTPS encryption

Yes

Active tampering alarm

Yes

Password protection

Yes

Mirror

Yes

Heartbeat

Yes

Digital watermark

Yes

Pixel counter

Yes

Password reset via email

Yes

Human and vehicle targets classification

Yes

Flash log

Yes

Digest authentication

Yes

Audit log

Yes

Reset button

Yes

Power source type

DC, PoE

Power consumption (max)

8.5 W

Power consumption (Power over Ethernet (PoE))

11 W

DC output voltage

12

DC output current

0.7 A

Operating temperature (T-T)

-30 - 60 °C

Storage temperature (T-T)

-30 - 60 °C

Operating relative humidity (H-H)

0 - 95%

Storage relative humidity (H-H)

0 - 95%

Height

115.4 mm

Diameter

13.8 cm

Weight

750 g

Package width

170 mm

Package height

160 mm

Package depth

170 mm

Package weight

1.14 kg

Package width

170 mm

Package height

160 mm

Package depth

170 mm

Package weight

1.14 kg

Compliance certificates

CB, CE, Electromagnetic Compatibility (EMC), KC, RCM, RoHS, UKCA, UL

Number of cameras

1

Lens mount interface

M12

Compliance certificates

CB, CE, Electromagnetic Compatibility (EMC), KC, RCM, RoHS, UKCA, UL

Video compression formats

H.264, H.264+, H.265, H.265+, M-JPEG
