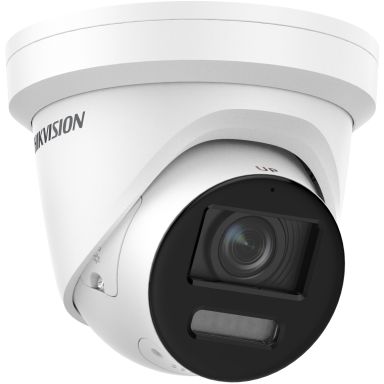

Hikvision DS-2CD2387G2-LSU/SL(4mm)(C) Turret IP security camera Outdoor 3840 x 2160 pixels Ceiling/wall

Number of languages

33

Languages support

Multi

Type

IP security camera

Connectivity technology

Wired

Placement supported

Outdoor

Wide Dynamic Range (WDR)

Yes

Day/night mode

Yes

Alarm input/output

Yes

Certification

FCC: 47 CFR Part 15, Subpart B CE-EMC: EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013 + A1: 2019, EN 50130-4: 2011 + A1: 2014 RCM: AS/NZS CISPR 32: 2015 IC: ICES-003: Issue 7 KC: KN32: 2015, KN35: 2015 UL: UL 62368-1 CB: IEC 62368-1: 2014 + A11 CE-LVD: EN 62368-1: 2014/A11: 2017 CE-RoHS: 2011/65/EU WEEE: 2012/19/EU Reach: Regulation (EC) No 1907/2006

Dynamic range

130 dB

Form factor

Turret

Product colour

White

Mounting type

Ceiling/wall

Protection features

Waterproof

International Protection (IP) code

IP67

Housing material

Metal

Minimum illumination

0 lx

Tilt angle range

Pan range

Angle of rotation

Lens viewing angle, horizontal

Lens viewing angle, vertical

Lens viewing angle, diagonal

Progressive scan

Yes

Sensor type

CMOS

Progressive scan

Yes

Optical sensor size

25.4 / 1.2 mm (1 / 1.2")

Number of sensors

1

Number of lenses

1

Maximum aperture number

1

Detect distance

102 m

Observe distance

40 m

Recognize distance

20 m

Identify distance

10 m

Fixed focal length

4 mm

Night vision

Yes

Night vision distance

30 m

Infra-red wavelength

8500 nm

Noise reduction

Yes

Image quality adjustment

Brightness, Contrast, Saturation, Sharpness

Privacy masking

Yes

Region of Interest (ROI) encoding

Yes

Highlight Compensation (HLC)

Yes

Bit rate control

Constant Bit Rate (CBR)/Variable Bit Rate (VBR)

Bit rate

32 Kbps - 16 Mbps

Back Light Compensation (BLC)

Yes

Noise reduction technology

3D noise reduction

Video compression formats

H.264, H.264+, H.265, H.265+, M-JPEG

Maximum resolution

3840 x 2160 pixels

Supported graphics resolutions

640 x 360, 640 x 480 (VGA), 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2688 x 1520, 3200 x 1800, 3840 x 2160

Frame rate

30 fps

Video streaming

Yes

Total megapixels

8 MP

Audio input channels

1.0 channels

Audio output channels

1.0 channels

Built-in speaker(s)

Yes

Signal-to-Noise Ratio (SNR)

52 dB

Built-in microphone

Yes

Audio formats supported

AAC-LC, G.711, G.722.1, G.726, MP2L2, PCM

Sample rates

8 - 48 kHz

Bit rate range

8 - 320 Kbit/s

Bluetooth

No

Ethernet interface type

Fast Ethernet

Networking standards

IEEE 802.1x, IEEE 802.3af

Quality of Service (QoS) support

Yes

Number of users

32 user(s)

Ethernet LAN

Yes

Wi-Fi

No

Supported network protocols

TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets

User access level

Administrator, Operator, User

Number of simultaneous live view channels

6 channels

Live view

Yes

Maximum memory card size

256 GB

Card reader integrated

Yes

Built-in HDD

No

Compatible memory cards

MicroSD (TransFlash), MicroSDHC, MicroSDXC

Ethernet LAN (RJ-45) ports

1

Connectivity technology

Wired

Privacy protection

Yes

Intelligent Video Surveillance (IVS) system features

Crossing line, Face detection

Video motion detection

Yes

Security algorithms

EAP-LEAP, EAP-MD5, EAP-TLS

IP address filtering

Yes

HTTPS encryption

Yes

Password protection

Yes

Mirror

Yes

Heartbeat

Yes

Digital watermark

Yes

Anti-flicker

Yes

Pixel counter

Yes

Password reset via email

Yes

Automatic Network Replenishment (ANR)

Yes

Alarm input channels

1

Alarm output channels

1

Web browser

Yes

Web-based management

Yes

Reset button

Yes

Behavior analysis

Intrusion detection, Line crossing detection, Region entrance detection, Region exiting detection

Power source type

DC, PoE

Power consumption (max)

8.5 W

DC output voltage

12

DC output current

0.63 A

Certification

FCC: 47 CFR Part 15, Subpart B CE-EMC: EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013 + A1: 2019, EN 50130-4: 2011 + A1: 2014 RCM: AS/NZS CISPR 32: 2015 IC: ICES-003: Issue 7 KC: KN32: 2015, KN35: 2015 UL: UL 62368-1 CB: IEC 62368-1: 2014 + A11 CE-LVD: EN 62368-1: 2014/A11: 2017 CE-RoHS: 2011/65/EU WEEE: 2012/19/EU Reach: Regulation (EC) No 1907/2006

Operating temperature (T-T)

Storage temperature (T-T)

Operating relative humidity (H-H)

0 - 95%

Storage relative humidity (H-H)

0 - 95%

Height

120.1 mm

Diameter

13.8 cm

Weight

900 g

Package width

170 mm

Package height

170 mm

Package depth

150 mm

Package weight

1.19 kg

Package width

170 mm

Package height

170 mm

Package depth

150 mm

Package weight

1.19 kg

Compliance certificates

REACH, RoHS

Number of cameras

1

Compliance certificates

REACH, RoHS

Video compression formats

H.264, H.264+, H.265, H.265+, M-JPEG
