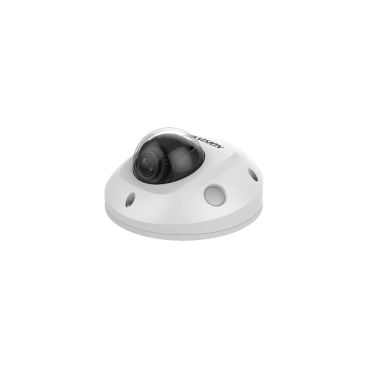

Hikvision DS-2CD2543G2-IWS Dome IP security camera Outdoor 2688 x 1520 pixels Ceiling/wall

Infrared (IR) cut-off filter

Yes

Number of languages

33

Type

IP security camera

Connectivity technology

Wired & Wireless

Placement supported

Outdoor

Wide Dynamic Range (WDR)

Yes

Day/night mode

Yes

Alarm input/output

Yes

IK code

IK08

Form factor

Dome

Product colour

White

Mounting type

Ceiling/wall

International Protection (IP) code

IP67

Minimum illumination

0 lx

Tilt angle range

0 - 75°

Pan range

-30 - 30°

Angle of rotation

360°

Camera shutter speed

1/3 - 1/100000 s

Camera pan control

Yes

Camera tilt control

Yes

Lens viewing angle, horizontal

104.3°

Lens viewing angle, vertical

55.9°

Lens viewing angle, diagonal

123.8°

Progressive scan

Yes

Sensor type

CMOS

Progressive scan

Yes

Optical sensor size

25.4 / 3 mm (1 / 3")

Number of sensors

1

Number of lenses

1

Maximum aperture number

1.6

Detect distance

64 m

Observe distance

25 m

Recognize distance

13 m

Identify distance

6 m

Fixed focal length

2.8 mm

Night vision

Yes

Night vision distance

30 m

LED type

IR

Infra-red wavelength

850 nm

Noise reduction

Yes

Image quality adjustment

Brightness, Contrast, Saturation, Sharpness

Gain control type

Auto

Region of Interest (ROI) encoding

Yes

Highlight Compensation (HLC)

Yes

Bit rate control

Constant Bit Rate (CBR)/Variable Bit Rate (VBR)

Bit rate

32 Kbps - 8 Mbps

Back Light Compensation (BLC)

Yes

Noise reduction technology

3D noise reduction

Video compression formats

H.264, H.264+, H.265, H.265+, M-JPEG

Maximum resolution

2688 x 1520 pixels

Frame rate

30 fps

Video streaming

Yes

Total megapixels

4 MP

Voice codecs

G.711alaw, G.711ulaw, G.722.1, G.726, MP2L2

Audio input channels

1.0 channels

Audio output channels

1.0 channels

Sample rate

48 kHz

Audio formats supported

AAC, MP3

Bluetooth

No

Ethernet interface type

Fast Ethernet

Networking standards

IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3af

Quality of Service (QoS) support

Yes

Number of users

32 user(s)

Ethernet LAN

Yes

Wi-Fi

Yes

Wi-Fi standards

802.11b, 802.11g, Wi-Fi 4 (802.11n)

Wi-Fi data rate (max)

300 Mbit/s

Supported network protocols

TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, QoS, IPv6, UDP, Bonjour, SSL/TLS, PPPoE

Maximum memory card size

256 GB

Card reader integrated

Yes

Built-in HDD

No

Compatible memory cards

MicroSD (TransFlash), MicroSDHC, MicroSDXC

Ethernet LAN (RJ-45) ports

1

Connectivity technology

Wired & Wireless

Intelligent Video Surveillance (IVS) system features

Face detection

Video motion detection

Yes

Web-based management

Yes

Reset button

Yes

Behavior analysis

Intrusion detection, Line crossing detection

Power source type

DC, PoE

Power consumption (Power over Ethernet (PoE))

7 W

DC output voltage

12

Operating temperature (T-T)

-30 - 60 °C

Storage temperature (T-T)

-30 - 60 °C

Operating relative humidity (H-H)

0 - 95%

Storage relative humidity (H-H)

0 - 95%

Height

57.4 mm

Diameter

11 cm

Weight

380 g

Package width

134 mm

Package height

108 mm

Package depth

134 mm

Package weight

615 g

Package width

134 mm

Package height

108 mm

Package depth

134 mm

Package weight

615 g

Number of cameras

1

Video compression formats

H.264, H.264+, H.265, H.265+, M-JPEG
