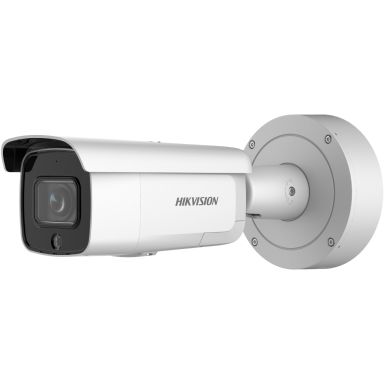

Hikvision DS-2CD2686G2-IZSU/SL Bullet IP security camera Outdoor 3840 x 2160 pixels Ceiling/wall

Infrared (IR) cut-off filter

Yes

Type

IP security camera

Connectivity technology

Wired

Placement supported

Outdoor

Wide Dynamic Range (WDR)

Yes

Day/night mode

Yes

IK code

IK10

Form factor

Bullet

Product colour

White

Mounting type

Ceiling/wall

International Protection (IP) code

IP66

Housing material

Aluminium

Minimum illumination

0 lx

Tilt angle range

Pan range

Angle of rotation

Camera shutter speed

1/3 - 1/100000 s

Camera pan control

Yes

Camera tilt control

Yes

Lens viewing angle, horizontal

Lens viewing angle, vertical

Lens viewing angle, diagonal

Progressive scan

Yes

Sensor type

CMOS

Progressive scan

Yes

Optical sensor size

25.4 / 1.8 mm (1 / 1.8")

Number of sensors

1

Number of lenses

1

Maximum aperture number

1.4

Recognize distance (wide)

17.2 m

Recognize distance (tele)

42.8 m

Observe distance (wide)

34.1 m

Observe distance (tele)

84.9 m

Identify distance (wide)

8.6 m

Identify distance (tele)

21.4 m

Detect distance (wide)

86 m

Detect distance (tele)

214 m

Focal length range

2.8-12 mm

Night vision

Yes

Night vision distance

60 m

LED type

IR

Infra-red wavelength

850 nm

Noise reduction

Yes

Image quality adjustment

Brightness, Contrast, Saturation, Sharpness

Region of Interest (ROI) encoding

Yes

Highlight Compensation (HLC)

Yes

Bit rate control

Constant Bit Rate (CBR)/Variable Bit Rate (VBR)

Bit rate

32 Kbps - 16 Mbps

Back Light Compensation (BLC)

Yes

Noise reduction technology

3D noise reduction

Video compression formats

H.264, H.264+, H.265, H.265+, M-JPEG

Maximum resolution

3840 x 2160 pixels

Supported graphics resolutions

640 x 480 (VGA), 704 x 480, 704 x 576, 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2560 x 1440, 3840 x 2160

Frame rate

30 fps

Video streaming

Yes

Total megapixels

8 MP

Voice codecs

G.711alaw, G.711ulaw, G.722.1, G.726, MP2L2, PCM

Sample rate

48 kHz

Bluetooth

No

Ethernet interface type

Fast Ethernet

Networking standards

IEEE 802.1x, IEEE 802.3at

Quality of Service (QoS) support

Yes

Number of users

32 user(s)

Ethernet LAN

Yes

Wi-Fi

No

Supported network protocols

TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP

Maximum memory card size

256 GB

Card reader integrated

Yes

Built-in HDD

No

Compatible memory cards

MicroSD (TransFlash), MicroSDHC, MicroSDXC

Ethernet LAN (RJ-45) ports

1

Connectivity technology

Wired

Intelligent Video Surveillance (IVS) system features

Scene change

Video motion detection

Yes

IP address filtering

Yes

HTTPS encryption

Yes

Mirror

Yes

Heartbeat

Yes

Anti-flicker

Yes

Web-based management

Yes

Reset button

Yes

Behavior analysis

Intrusion detection, Line crossing detection, Region entrance detection, Region exiting detection

Power source type

DC, PoE

Power consumption (max)

14.5 W

Power consumption (Power over Ethernet (PoE))

18 W

DC output voltage

12

Operating temperature (T-T)

Storage temperature (T-T)

Operating relative humidity (H-H)

0 - 95%

Storage relative humidity (H-H)

0 - 95%

Length

342.7 mm

Diameter

14.4 cm

Weight

1.45 kg

Package width

385 mm

Package height

180 mm

Package depth

190 mm

Package weight

2.54 kg

Package width

385 mm

Package height

180 mm

Package depth

190 mm

Package weight

2.54 kg

Number of cameras

1

Video compression formats

H.264, H.264+, H.265, H.265+, M-JPEG
