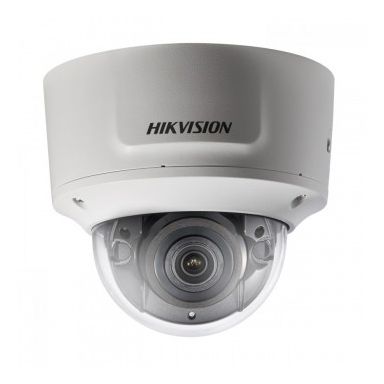

Hikvision DS-2CD2765G0-IZS(2.8-12MM) 6MP DOME
In Stock
|
Call For Price
(0808 189 1246)
SPECIFICATIONS
Product Description
Hikvision 6 MP IR Varifocal Dome Network Camera DS-2CD2765G0-IZS - camera
Device Type
Network surveillance camera - fixed dome
Audio
Yes
Dimensions (WxDxH)
6 in x 6 in x 5.2 in
Weight
2.87 lbs
Connectivity Technology
Wired
Camera
Color - Day&Night - NTSC PAL
Optical Zoom
4.3 x
Max Resolution
3072 x 2048
Frame Rate (max)
30 frames per second
Motion Detection
Yes
Optical Sensor Type
PS CMOS - 1/2.4" - 6 MP
Focal Length Control
Vari-focal
Focal Length
2.8 mm - 12 mm
Lens Mounting
F14 mount
Focus Adjustment
Automatic
Panning Range (degree)
0 to 355
Tilting Range (degree)
0 to 75
Voltage
DC 12 V / PoE Class 3
Environmental Parameters (operating)
-22 °F - 140 °F; 0 - 95% (non-condensing) relative humidity
General
Device Type
Network surveillance camera
Audio Support
Yes
Audio Formats
PCM G.726 G.711 G.722.1 MP2L2
Connectivity Technology
Wired
Width
6 in
Depth
6 in
Height
5.2 in
Weight
2.87 lbs
Camera
Type
Color - Day&Night - fixed dome
Video Format
NTSC PAL
Digital Video Format
MJPEG H.264 H.265 H.265+ H.264+
Max Digital Video Resolution
3072 x 2048
Motion Detection
Yes
Exposure Range
1/3 sec - 1/100000 sec
Infrared LEDs
Yes
Infrared Distance
98 ft
Frame Rate (max)
30 frames per second
Image Sensor
Type
6 MP PS CMOS 1/2.4"
Lens Construction
Type
F14 mount - vari-focal
Optical Zoom
4.3 x
Focal Length
2.8 mm - 12 mm
Focus Adjustment
Automatic
Horizontal Field of View (degree)
34 - 114
Vertical Field of View (degree)
23 - 71
Panning
Range (degree)
0 to 355
Tilting
Range (degree)
0 to 75
Interfaces
Video
Composite video
Network Interface
Ethernet 10Base-T/100Base-TX
Alarm Inputs Qty
1
Alarm Outputs Qty
1
Expansion / Connectivity
Miscellaneous
Compliant Standards
IP67 IK10 IEEE 802.3af
Power
Power Requirements
DC 12 V / PoE Class 3
Power Device
12.5 Watt
Dimensions & Weight (Shipping)
Shipping Weight
3.31 lbs
Environmental Parameters
Min Operating Temperature
-22 °F
Max Operating Temperature
140 °F
Relative Humidity (operating)
0 - 95% (non-condensing)
Hikvision DS-2CD2765G0-IZS(2.8-12MM) 6MP DOME
| Length | 15.24 cm |
| Width | 15.24 cm |
| Height | 13.21 cm |
| Weight | 1.300000 kgs |
