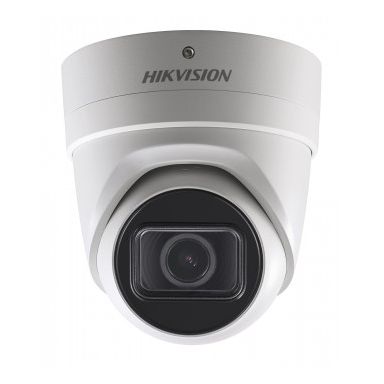

Hikvision DS-2CD2H45FWD-IZS IP security camera Indoor & outdoor Dome Ceiling 2688 x 1520 pixels
In Stock
|
Call For Price
(0808 189 1246)
SPECIFICATIONS
Product Description
Hikvision EasyIP 3.0 DS-2CD2H45FWD-IZS - network surveillance camera
Device Type
Network surveillance camera - fixed dome - vandal / weatherproof
Audio
Yes: two-way audio capability
Dimensions (WxDxH)
5.3 in x 5.3 in x 5.7 in
Weight
2.34 lbs
Connectivity Technology
Wired
Camera
Color - Day&Night - NTSC PAL
Optical Zoom
4.3 x
Max Resolution
2560 x 1440
Frame Rate (max)
30 frames per second
Motion Detection
Yes
Optical Sensor Type
PS CMOS - 1/2.5" - 4 MP
Focal Length Control
Motorized zoom
Focal Length
2.8 mm - 12 mm
Lens Mounting
F14 mount
Focus Adjustment
Automatic
Lens Iris
F/1.2
Panning Range (degree)
0 to 355
Tilting Range (degree)
0 to 75
Voltage
DC 12 V / PoE Class 3
Environmental Parameters (operating)
-22 °F - 140 °F; 0 - 95% (non-condensing) relative humidity
General
Device Type
Network surveillance camera
Audio Support
Yes: two-way audio capability
Connectivity Technology
Wired
Width
5.3 in
Depth
5.3 in
Height
5.7 in
Weight
2.34 lbs
Camera
Video Format
NTSC PAL
Digital Video Format
MJPEG H.264 H.265 H.265+ H.264+
Max Digital Video Resolution
2560 x 1440
Motion Detection
Yes
Exposure Range
1/3 sec - 1/100000 sec
Infrared LEDs
Yes
Infrared Distance
98 ft
Image Sensor
Type
4 MP PS CMOS 1/2.5"
Lens Construction
Type
F14 mount - motorized zoom
Optical Zoom
4.3 x
Focal Length
2.8 mm - 12 mm
Lens Iris
F/1.2
Focus Adjustment
Automatic
Horizontal Field of View (degree)
32 - 114
Vertical Field of View (degree)
18 - 59
Panning
Range (degree)
0 to 355
Tilting
Range (degree)
0 to 75
Interfaces
Video
Composite video
Network Interface
Ethernet 10Base-T/100Base-TX
Alarm Inputs Qty
1
Alarm Outputs Qty
1
Expansion / Connectivity
Supported Memory Cards
microSD Card microSDHC Card microSDXC Card
Miscellaneous
Compliant Standards
IP67 IK10
Power
Power Requirements
DC 12 V / PoE Class 3
Power Device
12.5 Watt
Dimensions & Weight (Shipping)
Shipping Weight
2.69 lbs
Environmental Parameters
Min Operating Temperature
-22 °F
Max Operating Temperature
140 °F
Relative Humidity (operating)
0 - 95% (non-condensing)
Hikvision DS-2CD2H45FWD-IZS IP security camera Indoor & outdoor Dome Ceiling 2688 x 1520 pixels
| Length | 13.46 cm |
| Width | 13.46 cm |
| Height | 14.48 cm |
| Weight | 1.060000 kgs |
