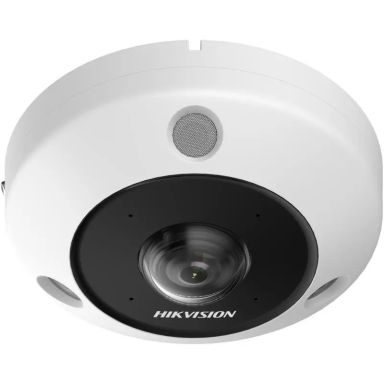

Hikvision DS-2CD6365G1-IVS(1.16MM)

Infrared (IR) cut-off filter

Yes

Number of languages

33

Languages support

Multi

Built-in heater

Yes

Type

IP security camera

Connectivity technology

Wired

PTZ control

Yes

Placement supported

Indoor

Wide Dynamic Range (WDR)

Yes

Day/night mode

Yes

Alarm input/output

Yes

Cable length

0.31 m

Picture overlay

128 x 128 pixels

Picture overlay

24 bit

Product colour

White

Mounting type

Ceiling/Wall/Desk

Protection features

Waterproof

International Protection (IP) code

IP67

Housing material

Metal

Minimum illumination

0 lx

Camera shutter speed

1 - 1/100000 s

Lens viewing angle, horizontal

Lens viewing angle, vertical

Number of Privacy masking areas

8

Progressive scan

Yes

Sensor type

CMOS

Progressive scan

Yes

Optical sensor size

25.4 / 1.8 mm (1 / 1.8")

Number of sensors

1

Number of lenses

1

Maximum aperture number

2.25

Detect distance

23.2 m

Observe distance

9.2 m

Recognize distance

4.6 m

Identify distance

2.3 m

Fixed focal length

1.16 mm

Night vision

Yes

Night vision distance

15 m

LED type

IR

Infra-red wavelength

850 nm

Noise reduction

Yes

Image quality adjustment

Brightness, Contrast, Saturation, Sharpness

Privacy masking

Yes

Region of Interest (ROI) encoding

Yes

Highlight Compensation (HLC)

Yes

Bit rate control

Constant Bit Rate (CBR)/Variable Bit Rate (VBR)

Bit rate

32 Kbps - 16 Mbps

Back Light Compensation (BLC)

Yes

Noise reduction technology

3D noise reduction

Video compression formats

H.264, H.264+, H.265, H.265+, M-JPEG

Maximum resolution

2560 x 2560 pixels

Supported graphics resolutions

320 x 240, 640 x 360, 640 x 480 (VGA), 720 x 720, 1024 x 768 (XGA), 1024 x 1024, 1280 x 1280, 1600 x 1200 (UXGA), 1920 x 1440, 1920 x 720, 2048 x 1536 (QXGA), 2048 x 2048, 2560 x 2560

Frame rate

30 fps

Video streaming

Yes

Total megapixels

6 MP

Video recording

Yes

Built-in speaker(s)

Yes

Built-in microphone

Yes

Audio formats supported

AAC-LC, G.711, G.722.1, G.726, MP2L2, MP3, PCM

Sample rates

8 - 48 kHz

Bit rate range

8 - 320 Kbit/s

Bluetooth

No

Quality of Service (QoS) support

Yes

Number of users

32 user(s)

Ethernet LAN

No

Wi-Fi

No

Supported network protocols

TCP/IP, ICMP, HTTP, HTTPS, FTP, SFTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, ISUP, ARP, WebSocket, WebSockets, SIP

Client interoperability

iVMS-4200, iVMS-4500, iVMS-5200, Hik-Connect

User access level

Administrator, Operator, User

Number of simultaneous live view channels

20 channels

Live view

Yes

Maximum memory card size

256 GB

Card reader integrated

Yes

Built-in HDD

No

Compatible memory cards

MicroSD (TransFlash), MicroSDHC, MicroSDXC

Internal memory

60 MB

Flash memory

2000 MB

RS-485 ports

1

Microphone in

Yes

Headphone outputs

1

Ethernet LAN (RJ-45) ports

1

Connectivity technology

Wired

Privacy protection

Yes

Video motion detection

Yes

Security algorithms

EAP-LEAP, EAP-MD5, EAP-TLS

IP address filtering

Yes

HTTPS encryption

Yes

Active tampering alarm

Yes

Password protection

Yes

Heartbeat

Yes

Digital watermark

Yes

Password reset via email

Yes

Flash log

Yes

Digest authentication

Yes

Automatic Network Replenishment (ANR)

Yes

Alarm input channels

2

Alarm output channels

2

Network access storage (NAS)

Yes

Web browser

Yes

Reset button

Yes

Behavior analysis

Intrusion detection, Line crossing detection, Object removal detection, Region entrance detection, Region exiting detection, Unattended baggage detection

Power source type

DC, PoE

Power consumption (max)

11.5 W

Power consumption (Power over Ethernet (PoE))

12.5 W

DC output voltage

12

DC output current

1 A

Operating temperature (T-T)

Storage temperature (T-T)

Operating relative humidity (H-H)

0 - 95%

Storage relative humidity (H-H)

0 - 95%

Height

59.4 mm

Diameter

14 cm

Weight

715 g

Package width

260 mm

Package height

135 mm

Package depth

230 mm

Package weight

1.21 kg

Cable length

0.31 m

Package width

260 mm

Package height

135 mm

Package depth

230 mm

Package weight

1.21 kg

Sustainability compliance

Yes

Compliance certificates

REACH, RoHS, WEEE

Number of cameras

1

Audio input

1

Sustainability compliance

Yes

Compliance certificates

REACH, RoHS, WEEE

Video compression formats

H.264, H.264+, H.265, H.265+, M-JPEG

Audio output

1
