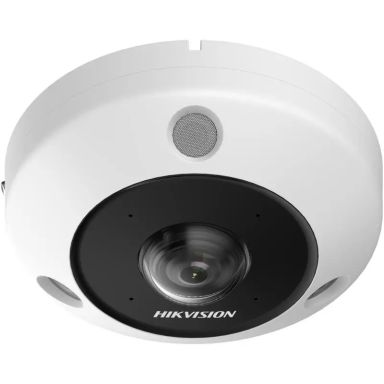

Hikvision DS-2CD63C5G1-IVS(1.29MM)

Infrared (IR) cut-off filter

Yes

Number of languages

33

Languages support

Multi

Type

IP security camera

Connectivity technology

Wired

PTZ control

Yes

Placement supported

Indoor & outdoor

Wide Dynamic Range (WDR)

Yes

Day/night mode

Yes

Alarm input/output

Yes

Certification

CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021, EN 50121-4: 2016+A1:2019, RCM: AS/NZS CISPR 32: 2015, IC: ICES-003: Issue 7, KC: KN32: 2015, KN35: 2015 UL: UL 62368-1, CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017, BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005 CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006

IK code

IK10

Form factor

Dome

Product colour

White

Mounting type

Ceiling

International Protection (IP) code

IP67

Housing material

Metal

Minimum illumination

0 lx

Camera shutter speed

1 - 1/100000 s

Lens viewing angle, horizontal

Lens viewing angle, vertical

Progressive scan

Yes

Sensor type

CMOS

Progressive scan

Yes

Optical sensor size

25.4 / 1.8 mm (1 / 1.8")

Number of sensors

1

Number of lenses

1

Maximum aperture number

2.2

Detect distance

27.9 m

Observe distance

11.1 m

Recognize distance

5.6 m

Identify distance

2.8 m

Fixed focal length

1.29 mm

Night vision

Yes

Night vision distance

15 m

LED type

IR

Infra-red wavelength

850 nm

Noise reduction

Yes

Image quality adjustment

Brightness, Contrast, Saturation, Sharpness

Privacy masking

Yes

Gain control type

Auto

Smart IR

Yes

Region of Interest (ROI) encoding

Yes

Highlight Compensation (HLC)

Yes

Digital Wide Dynamic Range (DWDR)

Yes

Bit rate control

Constant Bit Rate (CBR)/Variable Bit Rate (VBR)

Bit rate

32 Kbps - 16 Mbps

Back Light Compensation (BLC)

Yes

Noise reduction technology

3D noise reduction

Video compression formats

H.264, H.264+, H.265, H.265+, M-JPEG

Maximum resolution

3504 x 3504 pixels

Supported graphics resolutions

320 x 240, 640 x 480 (VGA), 720 x 720, 1600 x 1280, 2048 x 1536 (QXGA), 2048 x 2048, 2560 x 2560, 3072 x 2304

Frame rate

30 fps

Total megapixels

12 MP

Audio input channels

1.0 channels

Audio output channels

1.0 channels

Built-in speaker(s)

Yes

Built-in microphone

Yes

Audio codecs

G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC

Sample rates

8 - 48 kHz

Bit rate range

8 - 320 Kbit/s

Bluetooth

No

Ethernet interface type

Fast Ethernet

Networking standards

IEEE 802.3af

Quality of Service (QoS) support

Yes

Number of users

32 user(s)

Ethernet LAN

Yes

Wi-Fi

No

Supported network protocols

TCP/IP, ICMP, HTTP, HTTPS, FTP, SFTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, ISUP, ARP, WebSocket, WebSockets

User access level

Administrator, Operator, User

Number of simultaneous live view channels

20 channels

Live view

Yes

Maximum memory card size

256 GB

Card reader integrated

Yes

Built-in HDD

No

Compatible memory cards

MicroSD (TransFlash), MicroSDHC, MicroSDXC

Internal memory

800 MB

Flash memory

2048 MB

RS-485 ports

1

Connectivity technology

Wired

Alert notification type

E-mail

Intelligent Video Surveillance (IVS) system features

Defocus, People counting, Scene change

Motion sensor

Yes

Security algorithms

EAP-MD5, EAP-PEAP, EAP-TLS, TLS

IP address filtering

Yes

HTTPS encryption

Yes

Active tampering alarm

Yes

Password protection

Yes

Heartbeat

Yes

Digital watermark

Yes

Password reset via email

Yes

Flash log

Yes

Digest authentication

Yes

Alarm input channels

2

Alarm output channels

2

Network access storage (NAS)

Yes

Web browser

Yes

Reset button

Yes

Behavior analysis

Intrusion detection, Line crossing detection, Object removal detection, Region entrance detection, Region exiting detection, Unattended baggage detection

Power source type

DC

Power consumption (max)

11.5 W

Power consumption (Power over Ethernet (PoE))

12.5 W

DC output voltage

12

DC output current

1 A

Certification

CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021, EN 50121-4: 2016+A1:2019, RCM: AS/NZS CISPR 32: 2015, IC: ICES-003: Issue 7, KC: KN32: 2015, KN35: 2015 UL: UL 62368-1, CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017, BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005 CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006

Operating temperature (T-T)

Storage temperature (T-T)

Operating relative humidity (H-H)

0 - 95%

Storage relative humidity (H-H)

0 - 95%

Height

59.4 mm

Diameter

14 cm

Weight

715 g

Package width

260 mm

Package height

135 mm

Package depth

230 mm

Package weight

1.21 kg

Package width

260 mm

Package height

135 mm

Package depth

230 mm

Package weight

1.21 kg

Number of cameras

1

Video compression formats

H.264, H.264+, H.265, H.265+, M-JPEG

Audio codecs

G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
