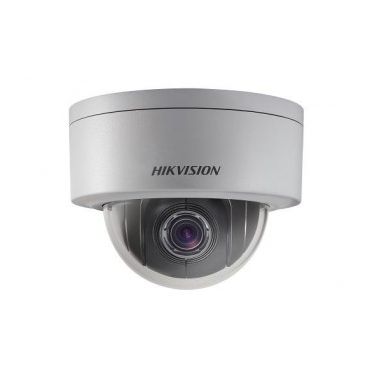

Hikvision DS-2DE3304W-DE IP security camera Indoor & outdoor Dome Ceiling/Wall 2048 x 1536 pixels
In Stock
|
Call For Price
(0808 189 1246)
SPECIFICATIONS
Product Description
Hikvision Network Mini PTZ Dome Camera DS-2DE3304W-DE - camera
Device Type
Network surveillance camera - pan / tilt / zoom - outdoor - weatherproof
Audio
Yes: two-way audio capability built-in microphone
Dimensions (WxDxH)
5.5 in x 5.5 in x 4.2 in
Weight
33.51 oz
Connectivity Technology
Wired
Camera
Color - Day&Night
Optical Zoom
4 x
Max Resolution
2048 x 1536
Frame Rate (max)
30 frames per second
Optical Sensor Type
CMOS - 1/2.8" - 3 MP
Focal Length Control
Motorized zoom
Focal Length
2.8 mm - 12 mm
Focus Adjustment
Automatic manual
Lens Iris
F/1.6-2.7
Panning Range (degree)
350
Tilting Range (degree)
0 to 90
Interfaces
Ethernet 10Base-T/100Base-TX
Control Interface
RS-485
Voltage
DC 12 V / PoE
Environmental Parameters (operating)
-22 °F - 149 °F; 0 - 90% relative humidity
General
Device Type
Network surveillance camera
Connectivity Technology
Wired
Width
5.5 in
Depth
5.5 in
Height
4.2 in
Weight
33.51 oz
Camera
Digital Video Format
MJPEG H.264 H.265
Max Digital Video Resolution
2048 x 1536
Digital Zoom
16
Exposure Range
1 sec - 1/10000 sec
Video Capture
2048 x 1536 30 fps
Image Sensor
Type
3 MP CMOS 1/2.8"
Lens Construction
Type
Motorized zoom
Optical Zoom
4 x
Focal Length
2.8 mm - 12 mm
Lens Iris
F/1.6-2.7
Focus Adjustment
Automatic manual
Panning
Range (degree)
350
Speed (degree/sec)
Up to 60
Tilting
Range (degree)
0 to 90
Speed (degree/sec)
Up to 50
Interfaces
Network Interface
Ethernet 10Base-T/100Base-TX
Control Interface
RS-485
Alarm Inputs Qty
1
Alarm Outputs Qty
1
Expansion / Connectivity
Miscellaneous
Compliant Standards
IK10 IP66
Power
Power Requirements
DC 12 V / PoE
Power Device
8 Watt
Environmental Parameters
Min Operating Temperature
-22 °F
Max Operating Temperature
149 °F
Relative Humidity (operating)
0 - 90%
Hikvision DS-2DE3304W-DE IP security camera Indoor & outdoor Dome Ceiling/Wall 2048 x 1536 pixels
| Length | 5.5 cm |
| Width | 5.5 cm |
| Height | 4.2 cm |
| Weight | 1.000000 kgs |
