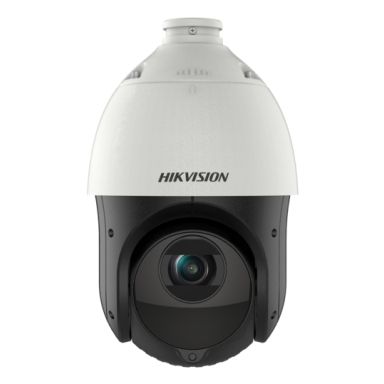

Hikvision DS-2DE4425IW-DE(S5)

Infrared (IR) cut-off filter

Yes

Type

IP security camera

Connectivity technology

Wired

PTZ control

Yes

Placement supported

Outdoor

Wide Dynamic Range (WDR)

Yes

Day/night mode

Yes

Alarm input/output

Yes

Certification

FCC (47 CFR 15, B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: 6, 2016); KC (KN 32: 2015, KN 35: 2015) UL (UL 62368-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 62368-1:2014+A11:2017); BIS (IS 13252 (1):2010+A1:2013+A2:2015); LOA (IEC/EN 60950-1)

Form factor

Dome

Product colour

White

Mounting type

Ceiling/wall

International Protection (IP) code

IP66

Pan preset speed

Minimum illumination

0 lx

Tilt angle range

Tilt speed

Pan range

Pan speed

Camera shutter speed

1/1 - 1/30000 s

Camera pan control

Yes

Camera tilt control

Yes

Lens viewing angle, horizontal

Lens viewing angle, vertical

Lens viewing angle, diagonal

Progressive scan

Yes

Sensor type

CMOS

Progressive scan

Yes

Optical sensor size

25.4 / 2.8 mm (1 / 2.8")

Number of sensors

1

Number of lenses

1

Maximum aperture number

1.6

Auto focus

Yes

Focus

Motorized/Manual

Zoom capability

Yes

Optical zoom

25x

Digital zoom

16x

Focal length range

4.8 - 120 mm

Night vision

Yes

Night vision distance

100 m

LED type

IR

Noise reduction

Yes

Image quality adjustment

Brightness, Contrast, Saturation, Sharpness

Privacy masking

Yes

Region of Interest (ROI) encoding

Yes

Highlight Compensation (HLC)

Yes

Bit rate

32 kbps - 16384 kbps

Back Light Compensation (BLC)

Yes

Noise reduction technology

3D noise reduction

Video compression formats

H.264, H.264+, H.265, H.265+, M-JPEG

Maximum resolution

2560 x 1440 pixels

Supported graphics resolutions

352 x 240, 352 x 288, 640 x 480 (VGA), 704 x 480, 704 x 576, 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2560 x 1440

Frame rate

30 fps

Video streaming

Yes

Total megapixels

4 MP

Voice codecs

AAC, G.711alaw, G.711ulaw, G.722.1, G.726, MP2L2, PCM

Audio input channels

1.0 channels

Audio output channels

1.0 channels

Sample rate

48 kHz

Bluetooth

No

Ethernet interface type

Fast Ethernet

Networking standards

IEEE 802.1x, IEEE 802.3at

Quality of Service (QoS) support

Yes

Number of users

32 user(s)

Ethernet LAN

Yes

Wi-Fi

No

Supported network protocols

IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour

Maximum memory card size

256 GB

Card reader integrated

Yes

Built-in HDD

No

Compatible memory cards

MicroSD (TransFlash), MicroSDHC, MicroSDXC

Ethernet LAN (RJ-45) ports

1

Connectivity technology

Wired

Intelligent Video Surveillance (IVS) system features

Face detection

Video motion detection

Yes

Security algorithms

EAP-LEAP, EAP-MD5, EAP-TLS

IP address filtering

Yes

HTTPS encryption

Yes

Password protection

Yes

Web-based management

Yes

Reset button

Yes

Behavior analysis

Intrusion detection, Line crossing detection, Object removal detection, Region entrance detection, Region exiting detection, Unattended baggage detection

Power source type

DC, PoE

Power consumption (max)

18 W

DC output voltage

12

Certification

FCC (47 CFR 15, B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: 6, 2016); KC (KN 32: 2015, KN 35: 2015) UL (UL 62368-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 62368-1:2014+A11:2017); BIS (IS 13252 (1):2010+A1:2013+A2:2015); LOA (IEC/EN 60950-1)

Operating temperature (T-T)

Operating relative humidity (H-H)

0 - 90%

Height

290 mm

Diameter

16.4 cm

Weight

2 kg

Number of cameras

1

Focus

Motorized/Manual

Video compression formats

H.264, H.264+, H.265, H.265+, M-JPEG
