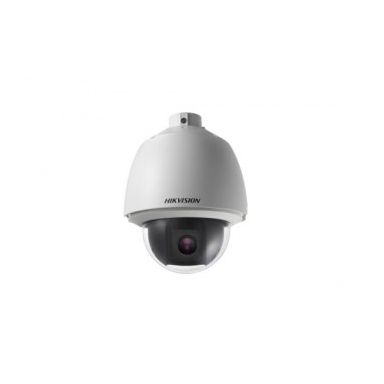

Hikvision DS-2DE5330W-AE IP security camera Indoor & outdoor Dome Ceiling/Wall 2048 x 1536 pixels
In Stock
|
Call For Price
(0808 189 1246)
SPECIFICATIONS
Product Description
Hikvision DE-line Network PTZ DS-2DE5330W-AE - network
Device Type
Network surveillance camera - pan / tilt / zoom - outdoor - weatherproof
Audio
Yes
Dimensions (WxDxH)
8.7 in x 8.7 in x 12 in
Weight
6.61 lbs
Connectivity Technology
Wired
Camera
Color - Day&Night - NTSC PAL
Optical Zoom
30 x
Max Resolution
2048 x 1536
Frame Rate (max)
60 frames per second
Motion Detection
Yes
Optical Sensor Type
CMOS - 1/2.8" - 3 MP
Focal Length
4.3 mm - 129 mm
Focus Adjustment
Automatic manual (min distance 0.4 in)
Lens Iris
F/1.6-5.0
Panning Range (degree)
360
Tilting Range (degree)
-5 to +90
Interfaces
Ethernet 10Base-T/100Base-TX
Voltage
AC 24 V / PoE Plus Class 4
Environmental Parameters (operating)
-22 °F - 149 °F; 0 - 90% relative humidity
General
Device Type
Network surveillance camera
Audio Support
Yes
Audio Formats
PCM G.726 G.711 G.722 MP2L2
Connectivity Technology
Wired
Width
8.7 in
Depth
8.7 in
Height
12 in
Weight
6.61 lbs
Camera
Video Format
NTSC PAL
Digital Video Format
MJPEG H.264 H.265 H.265+ H.264+
Max Digital Video Resolution
2048 x 1536
Motion Detection
Yes
Digital Zoom
16
Exposure Range
1 sec - 1/30000 sec
Infrared LEDs
Yes
Frame Rate (max)
60 frames per second
Image Sensor
Type
3 MP CMOS 1/2.8"
Lens Construction
Optical Zoom
30 x
Focal Length
4.3 mm - 129 mm
Lens Iris
F/1.6-5.0
Focus Adjustment
Automatic manual
Min Focus Distance
0.4 in
Horizontal Field of View (degree)
2.8 - 57.4
Panning
Range (degree)
360
Speed (degree/sec)
Up to 300
Tilting
Range (degree)
-5 to +90
Speed (degree/sec)
Up to 200
Interfaces
Network Interface
Ethernet 10Base-T/100Base-TX
Alarm Inputs Qty
2
Alarm Outputs Qty
1
Expansion / Connectivity
Ports
LAN/power - RJ-45 ¦ Audio line in ¦ Audio line out
Supported Memory Cards
microSD Card microSDHC Card microSDXC Card
Miscellaneous
Compliant Standards
IK10 IP66 IEEE 802.3at IEEE 802.1x
Power
Power Requirements
AC 24 V / PoE Plus Class 4
Power Device
18 Watt
Environmental Parameters
Min Operating Temperature
-22 °F
Max Operating Temperature
149 °F
Relative Humidity (operating)
0 - 90%
Hikvision DS-2DE5330W-AE IP security camera Indoor & outdoor Dome Ceiling/Wall 2048 x 1536 pixels
| Length | 22.10 cm |
| Width | 22.10 cm |
| Height | 30.48 cm |
| Weight | 3.000000 kgs |
