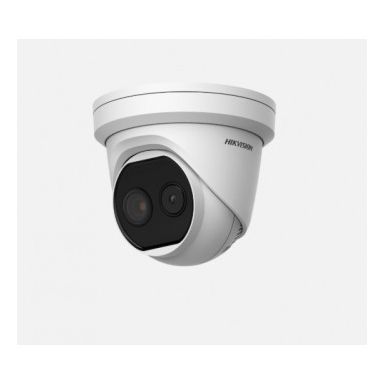

Hikvision Digital Technology DS-2TD1217B-3/PA security camera IP security camera Indoor Dome Ceiling 2688 x 1520 pixels
0 Reviews
| Add your review
In Stock
|
Call For Price
(0808 189 1246)
| SPECIFICATIONS | |
|---|---|
| Product Description | Hikvision DeepinView Temperature Screening Thermographic Turret Camera DS-2TD1217B-3/PA |
| Device Type | Thermal / network surveillance camera - fixed dome - indoor |
| Audio | Yes |
| Dimensions (WxDxH) | 5.4 in x 5.4 in x 4.8 in |
| Weight | 33.15 oz |
| Connectivity Technology | Wired |
| Camera | Color - Day&Night |
| Max Resolution | 2688 x 1520 (optical) / 160 x 120 (thermal) |
| Frame Rate (max) | 30 frames per second |
| Optical Sensor Type | Uncooled VOx FPA / PS CMOS - 1/2.7" |
| Focal Length Control | Fixed focal |
| Focal Length | 4 mm |
| Interfaces | Ethernet 10Base-T/100Base-TX |
| Control Interface | RS-485 |
| Voltage | DC 12 V / PoE Class 3 |
| General | |
| Device Type | Thermal / network surveillance camera |
| Audio Support | Yes |
| Audio Formats | PCM G.726 G.722.1 MP2L2 G711u G711a |
| Connectivity Technology | Wired |
| Width | 5.4 in |
| Depth | 5.4 in |
| Height | 4.8 in |
| Weight | 33.15 oz |
| Camera | |
| Type | Color - Day&Night - fixed dome - indoor |
| Digital Video Format | MJPEG H.264 H.265 |
| Max Digital Video Resolution | 2688 x 1520 (optical) / 160 x 120 (thermal) |
| Exposure Range | 1 sec - 1/100000 sec |
| Infrared LEDs | Yes |
| Infrared Distance | 49 ft |
| Frame Rate (max) | 30 frames per second |
| Image Sensor | |
| Type | Uncooled VOx FPA / PS CMOS 1/2.7" |
| Lens Construction | |
| Type | Fixed focal |
| Focal Length | 4 mm |
| Horizontal Field of View (degree) | 84 |
| Vertical Field of View (degree) | 44.8 |
| Interfaces | |
| Network Interface | Ethernet 10Base-T/100Base-TX |
| Control Interface | RS-485 |
| Alarm Inputs Qty | 1 |
| Alarm Outputs Qty | 1 |
| Expansion / Connectivity | |
| Supported Memory Cards | microSD Card microSDHC Card microSDXC Card |
| Miscellaneous | |
| Compliant Standards | IP66 IEEE 802.3af |
| Power | |
| Power Requirements | DC 12 V / PoE Class 3 |
| Environmental Parameters | |
| Min Operating Temperature | 50 °F |
| Max Operating Temperature | 95 °F |
| Relative Humidity (operating) | 0.95 |
Hikvision Digital Technology DS-2TD1217B-3/PA security camera IP security camera Indoor Dome Ceiling 2688 x 1520 pixels
| Length | 5.4 cm |
| Width | 5.4 cm |
| Height | 4.8 cm |
| Weight | 1.000000 kgs |
