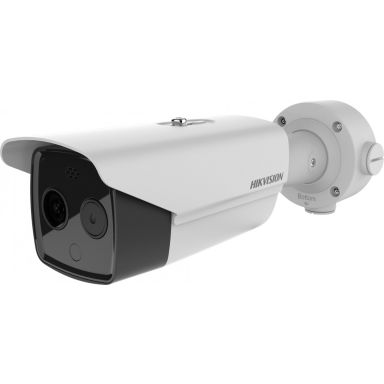

Hikvision DeepinView DS-2TD2617B-6/PA Outdoor Thermal & Optical Network Bullet Camera

Hikvision DeepinView DS-2TD2617B-6/PA Outdoor Thermal & Optical Network Bullet Camera

Ideal for outdoor perimeter protection, temperature screening, and fire detection, Hikvision DS-2TD2617B-6/PA UK is a cutting-edge outdoor-ready thermal and optical camera that is capable of delivering unmatched reliability and precision even in total darkness or harsh weather conditions.

Key Hikvision DS-2TD2617B-6/PA Specs:

• Perimeter protection function, based on an intelligent algorithm: line crossing, intrusion, region entrance & exit

• Temperature exception alarm

• Fire detection algorithm

• 160 × 120 (the resolution of output image is 320 × 240) resolution 17 μm, VOx UFPA, NETD ≤ 40 mK (25 °C, F# = 1.1)

• Image processing technology: Liner, histogram, and self-adaptive thermal AGC mode, DDE, 3D DNR

Here is an in-depth description of the Hikvision Thermographic Outdoor Camera:

• Thermal and Optical Bullet Camera:

This is an advanced bullet camera that features both a thermal module and a high-definition optical module, enabling the blend of visual and thermal data for maximum situational awareness.

• The thermal module features a Vanadium Oxide Uncooled Focal Plane Arrays image sensor, 160 × 120 resolution, 25.0° × 18.7° (H × V) Field of View, and up to 8x digital zoom. It can detect heat signatures, helping users enjoy accurate detection of people, vehicles, or objects in complete darkness, smoke, fog, or rain.

• The optical module comes with a 1/2.7" Progressive Scan CMOS image sensor, 2688 × 1520, 4 MP resolution, 39.42° × 22.14°(H × V) Field of View, and more, allowing users to capture detailed colour images for identification and scene verification.

The combined effect of thermal and optical cameras results in a surveillance and monitoring system that is beyond what the human eye can perceive, helping users establish reliable surveillance under all kinds of lighting conditions.

High-Precision Thermal Detection:

This is a dual-lens camera that is suitable for thermal imaging for surveillance and accurate temperature monitoring. The Bi-spectrum Image Fusion ensures displaying details of the optical channel on the thermal channel and a partial image of the thermal channel on the full screen of the optical channel. The 6mm thermal lens enables this camera to ensure precise temperature measurement and heat detection capabilities.

You can thus deploy Hikvision DS-2TD2617B-6/PA for multiple uses such as fire prevention and early warning systems, industrial site monitoring, power plant and substation surveillance, and perimeter protection in restricted areas. It has ± 8 °C (±14.4 °F) temperature accuracy.

Two-Way Communication:

It is provided with both a microphone and a speaker, allowing users to ensure two-way communication, improving communication among various departments of a firm.

Illuminator:

It is equipped with an IR illuminator that can cover a distance up to 40m. IR intensity and angle can be adjusted automatically, making this thermal bullet camera suitable for perimeter protection.

Smart Functions:

It features multiple advanced functionalities, including 3 temperature measurement rule types, 21 rules in total (10 points, 10 areas, and 1 line), dynamic fire detection with up to 10 fire points detectable, and a -20 °C to 150 °C (-4 °F to 302 °F) temperature range.
