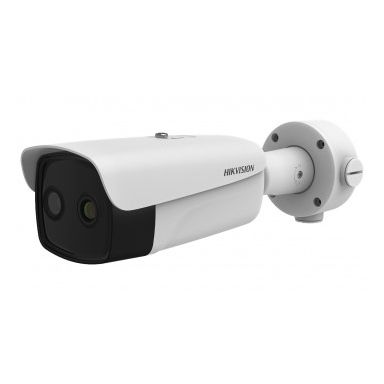

Hikvision Digital Technology DS-2TD2636B-15/P security camera IP security camera Indoor Bullet Ceiling/Wall/Pole 2688 x 1520 pixels
0 Reviews
| Add your review
In Stock
|
Call For Price
(0808 189 1246)
| SPECIFICATIONS | |
|---|---|
| Product Description | Hikvision Fever Screening Thermal & Optical Network Bullet Camera DS-2TD2636B-15/P |
| Device Type | Thermal / network surveillance camera - fixed - indoor |
| Audio | Yes |
| Dimensions (WxDxH) | 4.7 in x 14.8 in x 4.6 in |
| Weight | 4.01 lbs |
| Connectivity Technology | Wired |
| Camera | Color - Day&Night - NTSC PAL |
| Max Resolution | 2688 x 1520 (optical) / 384 x 288 (thermal) |
| Frame Rate (max) | 30 frames per second |
| Optical Sensor Type | Uncooled VOx FPA / PS CMOS - 1/2.7" |
| Minimum Illumination | 0.0089 lux - color - F1.6 - AGC on ¦ 0.0018 lux - B&W - F1.6 - AGC on |
| Focal Length Control | Fixed focal |
| Focal Length | 6 mm |
| Lens Iris | F/1.6 |
| Interfaces | Composite video Ethernet 10Base-T/100Base-TX |
| Voltage | DC 12 V / AC 24 V / PoE Class 3 |
| Environmental Parameters (operating) | 50 °F - 95 °F; 0 - 95% relative humidity |
| General | |
| Device Type | Thermal / network surveillance camera |
| Audio Support | Yes |
| Audio Formats | PCM G.726 G.722.1 MP2L2 G711u G711a |
| Connectivity Technology | Wired |
| Width | 4.7 in |
| Depth | 14.8 in |
| Height | 4.6 in |
| Weight | 4.01 lbs |
| Camera | |
| Type | Color - Day&Night - fixed - indoor |
| Video Format | NTSC PAL |
| Digital Video Format | MJPEG H.264 H.265 |
| Max Digital Video Resolution | 2688 x 1520 (optical) / 384 x 288 (thermal) |
| Exposure Range | 1 sec - 1/100000 sec |
| Minimum Illumination | 0.0089 lux - color - F1.6 - AGC on ¦ 0.0018 lux - B&W - F1.6 - AGC on |
| Digital Video Capture Resolution | 1280 x 720 1920 x 1080 2688 x 1520 |
| Frame Rate (max) | 30 frames per second |
| Image Sensor | |
| Type | Uncooled VOx FPA / PS CMOS 1/2.7" |
| Lens Construction | |
| Type | Fixed focal |
| Focal Length | 6 mm |
| Lens Iris | F/1.6 |
| Horizontal Field of View (degree) | 51.7 |
| Vertical Field of View (degree) | 28 |
| Interfaces | |
| Video | Composite video |
| Network Interface | Ethernet 10Base-T/100Base-TX |
| Alarm Inputs Qty | 2 |
| Alarm Outputs Qty | 2 |
| Expansion / Connectivity | |
| Ports | LAN/power ¦ Audio line in ¦ Composite video - BNC |
| Supported Memory Cards | microSD Card microSDHC Card microSDXC Card |
| Miscellaneous | |
| Compliant Standards | IP66 |
| Power | |
| Power Requirements | DC 12 V / AC 24 V / PoE Class 3 |
| Power Device | 9.5 Watt |
| Environmental Parameters | |
| Min Operating Temperature | 50 °F |
| Max Operating Temperature | 95 °F |
| Relative Humidity (operating) | 0 - 95% |
Hikvision Digital Technology DS-2TD2636B-15/P security camera IP security camera Indoor Bullet Ceiling/Wall/Pole 2688 x 1520 pixels
| Length | 14.8 cm |
| Width | 4.7 cm |
| Height | 4.6 cm |
| Weight | 1.000000 kgs |
