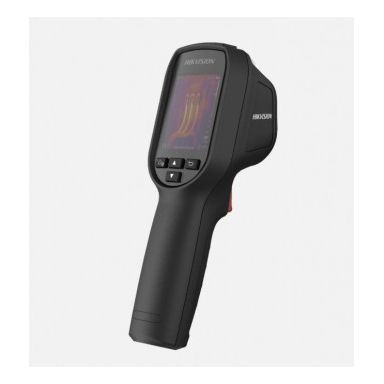

Hikvision Digital Technology DS-2TP31B-3AUF thermal imaging camera 160 x 120 pixels VOx Uncooled Focal Plane Arrays Black Built-in display LCD 320 x 240 pixels
In Stock
|
Call For Price
(0808 189 1246)
Performance
Sensor resolution (thermal module)
160 x 120 pixels
F-number (relative aperture)
1.1
Internal storage capacity
8 GB
Temperature measurement range
30 - 45 °C
Infrared spectral band
8 - 14 µm
Thermal sensitivity (NETD)
40 mK
IFOV (spatial resolution)
5.48 mRad
Lens system
Fixed focal length
3.1 mm
Design
Product colour
Black
Built-in display
Yes
Display type
LCD
Display diagonal
6.1 cm (2.4")
Display resolution
320 x 240 pixels
International Protection (IP) code
IP54
Operating temperature (T-T)
-10 - 50 °C
Ports & interfaces
USB port
Yes
Battery
Battery technology
Lithium-Ion (Li-Ion)
Input voltage
3.7 V
Input current
0.4 A
Input power
1.2 W
Battery life (max)
8 h
Weight & dimensions
Width
59 mm
Depth
117 mm
Height
196 mm
Weight
350 g
Hikvision Digital Technology DS-2TP31B-3AUF thermal imaging camera 160 x 120 pixels VOx Uncooled Focal Plane Arrays Black Built-in display LCD 320 x 240 pixels
