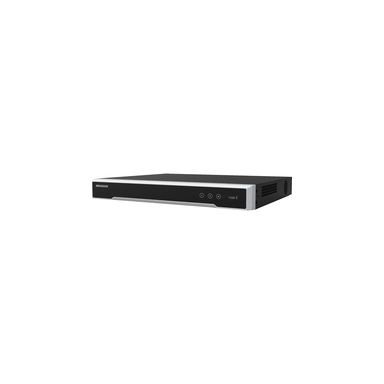

Hikvision DS-7608NI-M2/8P

Video input channels

8 channels

Alarm input channels

4

Alarm output channels

1

Maximum resolution

7680 x 4320 pixels

Video formats supported

H.264, H.264+, H.265, H.265+, MPEG4

Supported network protocols

TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP, HTTP, HTTPS

Audio formats supported

G.711 A-law, G.711 μ-law, G.722, G.726

Ethernet LAN data rates

10,100,1000 Mbit/s

Audio system

2-way

Supported resolutions

8K (7680 × 4320)/30Hz, 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60

Number of simultaneously playbacked channels

8 channels

Output bandwidth

256 Mbit/s

Input bandwidth

128 Mbit/s

Wi-Fi

No

Number of HDDs supported

2

Maximum storage capacity

14 TB

HDD interface

SATA, SATA II, SATA III

Number of HDDs installed

0

HDD capacity

0 GB

Number of HDDs supported

2

Maximum storage capacity

14 TB

HDD interface

SATA, SATA II, SATA III

Number of HDDs installed

0

HDD capacity

0 GB

Ethernet LAN (RJ-45) ports

9

Power over Ethernet (PoE)

Yes

BNC video output

Yes

VGA (D-Sub) output ports

1

HDMI output

Yes

USB 2.0 ports quantity

1

Supported network protocols

TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP, HTTP, HTTPS

Audio RCA inputs

1

Ethernet LAN data rates

10,100,1000 Mbit/s

Audio RCA outputs

1

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

1

Power over Ethernet (PoE) ports quantity

8

HDMI ports quantity

1

On/off switch

Yes

Rack capacity

1U

Product colour

Black

Brand compatibility

Hikvision Digital Technology

Output voltage

12 V

Output current

3.33 A

Power consumption (typical)

15 W

Total Power over Ethernet (PoE) budget

120 W

Operating temperature (T-T)

-10 - 55 °C

Operating relative humidity (H-H)

10 - 90%

Width

385 mm

Depth

315 mm

Height

52 mm

Weight

3 kg
