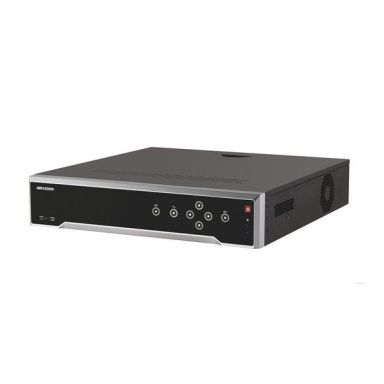

Hikvision DS-7716NI-K4/16P network video recorder 1.5U Black
In Stock
|
Call For Price
(0808 189 1246)
Performance
Video input channels
16 channels
Alarm input channels
16
Alarm output channels
4
Maximum resolution
3840 x 2160 pixels
Video formats supported
H.264-H.265-MPEG4
Ethernet LAN data rates
10-100-1000 Mbit/s
Networking standards
IEEE 802.3af-IEEE 802.3at
Storage
Number of HDDs supported
4
Maximum storage capacity
6 TB
HDD interface
Serial ATA
Ports & interfaces
Ethernet LAN (RJ-45) ports
9
Power over Ethernet (PoE)
Yes
VGA (D-Sub) output ports
1
HDMI output
Yes
USB 2.0 ports quantity
1
RS-485 ports
1
RS-232 interface
Yes
Audio RCA inputs
1
Audio RCA outputs
1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
1
Power over Ethernet (PoE) ports quantity
8
HDMI ports quantity
1
Features
Rack mounting
Yes
On/off switch
Yes
Rack capacity
1.5U
Product colour
Black
Power
Power consumption (typical)
20 W
AC input voltage
100 - 240 V
Power consumption (max)
300 W
Total Power over Ethernet (PoE) budget
200 W
Operational conditions
Operating temperature (T-T)
-10 - 55 °C
Operating relative humidity (H-H)
10 - 90%
Weight & dimensions
Width
445 mm
Depth
390 mm
Height
70 mm
Weight
5 kg
Hikvision DS-7716NI-K4/16P network video recorder 1.5U Black
| Length | 39.00 cm |
| Width | 44.50 cm |
| Height | 7.00 cm |
| Weight | 5.000000 kgs |
