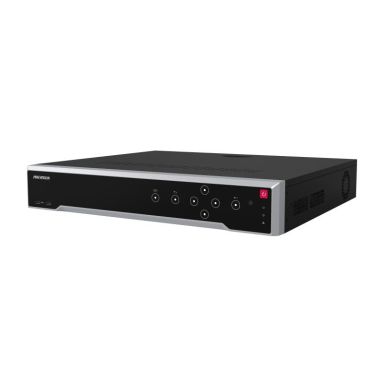

Hikvision DS-7732NI-M4/24P network video recorder 1.5U Black, Grey

Video input channels

32 channels

Alarm input channels

16

Alarm output channels

9

Maximum resolution

7680 x 4320 pixels

Video formats supported

H.264, H.264+, H.265, H.265+

Supported network protocols

TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP, HTTP, HTTPS

Audio formats supported

AAC, G.711 A-law, G.711 μ-law, G.722, G.726, MP2L2

Ethernet LAN data rates

10,100 Mbit/s

Maximum frame rate

60 fps

Supported resolutions

7680 x 4320, 3840 x 2160, 2560 x 1440, 1920 x 1080, 1600 x 1200, 1280 x 1024, 1280 x 720, 1024 x 768

Networking standards

IEEE 802.3af, IEEE 802.3at

Video recording modes

720p, 1080p, 2160p, 4320p

Output bandwidth

400 Mbit/s

Input bandwidth

320 Mbit/s

Wi-Fi

No

Number of HDDs supported

4

HDD interface

SATA

Number of HDDs supported

4

HDD interface

SATA

Ethernet LAN (RJ-45) ports

24

Power over Ethernet (PoE)

Yes

BNC video output

Yes

HDMI output

Yes

USB 2.0 ports quantity

2

Supported network protocols

TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP, HTTP, HTTPS

RS-485 ports

2

RS-232 interface

Yes

eSATA

Yes

Audio RCA inputs

1

Ethernet LAN data rates

10,100 Mbit/s

Audio RCA outputs

1

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

1

Power over Ethernet (PoE) ports quantity

24

eSATA ports quantity

1

RS-232 ports

1

Networking standards

IEEE 802.3af, IEEE 802.3at

HDMI ports quantity

2

Rack mounting

Yes

LED indicators

Yes

Certification

CE, REACH, WEEE, FCC, CB, RCM, KC, UL

Rack capacity

1.5U

Product colour

Black, Grey

Brand compatibility

Hikvision Digital Technology

Power consumption (typical)

15 W

AC input voltage

100 - 240 V

AC input frequency

50 - 60 Hz

Operating temperature (T-T)

-10 - 55 °C

Operating relative humidity (H-H)

10 - 90%

Width

445 mm

Depth

400 mm

Height

75 mm

Weight

5 kg

Quick installation guide

Yes
