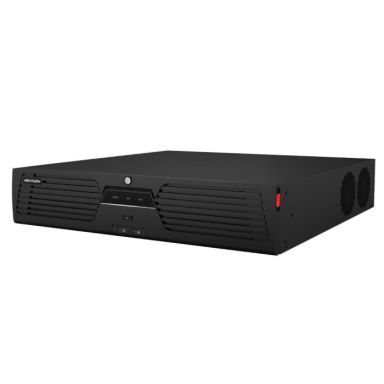

Hikvision DS-9664NI-M8

Video input channels

64 channels

Alarm input channels

16

Alarm output channels

9

Maximum resolution

7680 x 4320 pixels

Video codecs

H.265+/H.265/H.264+/H.264

Supported network protocols

TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS

Audio codecs

G.711ulaw/G.711alaw/G.722/G.726/AAC/MP2L2/PCM

Ethernet LAN data rates

10,100,1000 Mbit/s

Supported resolutions

8K (7680 × 4320)/30Hz, 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz

Number of simultaneously playbacked channels

16 channels

Output bandwidth

400 Mbit/s

Input bandwidth

400 Mbit/s

Maximum storage capacity

14 TB

HDD interface

SATA, eSATA

RAID support

Yes

RAID levels

0, 1, 5, 6, 10

Maximum storage capacity

14 TB

HDD interface

SATA, eSATA

RAID support

Yes

RAID levels

0, 1, 5, 6, 10

Ethernet LAN (RJ-45) ports

2

RAID levels

0, 1, 5, 6, 10

VGA (D-Sub) output ports

2

HDMI output

Yes

BNC audio output

Yes

USB 2.0 ports quantity

2

Supported network protocols

TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS

RS-485 ports

1

RS-232 interface

Yes

eSATA

Yes

Audio output

2-way

Ethernet LAN data rates

10,100,1000 Mbit/s

Audio RCA outputs

2

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

2

eSATA ports quantity

1

Internal SATA ports quantity

8

HDMI ports quantity

2

Rack mounting

Yes

Certification

CE, FCC Part 15 Subpart B, ANSI C63.4-2014 EN 55032:2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4

Rack capacity

2U

Product colour

Black

Brand compatibility

Hikvision Digital Technology

Power consumption (typical)

50 W

AC input voltage

100 - 240 V

AC input frequency

50 - 60 Hz

Operating temperature (T-T)

-10 - 55 °C

Operating relative humidity (H-H)

10 - 90%

Width

445 mm

Depth

465 mm

Height

93 mm

Weight

10 kg
