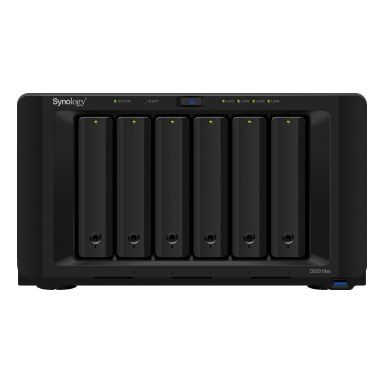

Synology DiskStation DS3018xs D1508 Ethernet LAN Desktop Black NAS
In Stock
|
Call For Price
(0808 189 1246)
Specifications
Storage
Storage drives installed
No
Installed storage drive type
No
Supported storage drive types
HDD-SSD
Number of storage drives supported
6
Maximum supported storage capacity
60 TB
Hot-swap drive bays
Yes
RAID support
Yes
Supported file systems
BTRFS-FAT-HFS+-NTFS-ext3-ext4
RAID levels
0-1-5-6-10-JBOD
Supported storage drive interfaces
Serial ATA-Serial ATA II-Serial ATA III
Storage drive sizes supported
2.5-3.5"
Processor
Thermal Design Power (TDP)
25 W
Stepping
V2
Scalability
1S
Processor threads
4
Processor socket
BGA 1667
Processor package size
37.5 x 37.5 mm
Processor operating modes
64-bit
Processor lithography
14 nm
Processor codename
Broadwell
Processor code
SR2DQ
Processor cache type
L3
Processor cache
3 MB
Processor boost frequency
2.60 GHz
PCI Express slots version
2.0-3.0
PCI Express configurations
1x16-1x4-1x8
ECC supported by processor
Yes
CPU configuration (max)
1
Maximum internal memory supported by processor
128 GB
Conflict-Free processor
Yes
Processor ARK ID
91558
Processor frequency
2.20 GHz
Processor family
Intel PentiumÂ
Processor model
D1508
Processor cores
2
Memory
Internal memory type
DDR4
Internal memory
8 GB
Maximum RAM supported
32 GB
Memory slots
2
Network
Ethernet LAN
Yes
Ethernet LAN data rates
10-100-1000 Mbit/s
Wi-Fi
No
Wake-on-LAN ready
Yes
iSCSI support
Yes
Ports & interfaces
USB port
Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
3
Ethernet LAN (RJ-45) ports
4
Hard drive
RAID support
Yes
Supported file systems
BTRFS-FAT-HFS+-NTFS-ext3-ext4
RAID levels
0-1-5-6-10-JBOD
Design
Fan diameter 2
9.2 cm
Cooling type
Active
Fan diameter
9.2 cm
Drive bay locking
Yes
Cable lock slot type
Kensington
Product colour
Black
Number of fans
2 fan(s)
LED indicators
Alarm-HDD-LAN-Status
Chassis type
Desktop
Cable lock slot
Yes
Technical details
Type
NAS
Device class
Small & Medium Business
Backup function
Yes
Backup features
Cloud-iSCSI LUN
Built-in optical drive
No
Product colour
Black
Number of users
16000 user(s)
Noise level
25.5 dB
LED indicators
Alarm-HDD-LAN-Status
Chassis type
Desktop
Number of fans
2 fan(s)
Performance
Type
NAS
Device class
Small & Medium Business
Backup function
Yes
Backup features
Cloud-iSCSI LUN
Built-in optical drive
No
On/off switch
Yes
Windows operating systems supported
Windows 10-Windows 7
Mac operating systems supported
Mac OS X 10.11 El Capitan
Reset button
Yes
Number of users
16000 user(s)
Noise level
25.5 dB
Access Control List (ACL)
Yes
Cooling
Cooling type
Active
Fan diameter
9.2 cm
Number of fans
2 fan(s)
Security
Drive bay locking
Yes
Cable lock slot type
Kensington
Cable lock slot
Yes
Access Control List (ACL)
Yes
Software
Windows operating systems supported
Windows 10-Windows 7
Mac operating systems supported
Mac OS X 10.11 El Capitan
Management features
On/off switch
Yes
Reset button
Yes
Power
Power supply unit (PSU) capacity
250 W
AC input voltage
100 - 240 V
AC input frequency
50 - 60 Hz
Power consumption (typical)
126.89 W
Power consumption (sleep)
56.92 W
External power adapter
Yes
Weight & dimensions
Width
282 mm
Depth
243 mm
Height
166 mm
Weight
5.2 kg
Packaging content
Quick installation guide
Yes
External power adapter
Yes
Cables included
AC-LAN (RJ-45)
Processor special features
UART
Yes
Thermal Monitoring Technologies
Yes
Maximum number of PCI Express lanes
32
Intel Turbo Boost Technology
2
Intel Secure Key
Yes
Intel OS Guard
Yes
Intel Identity Protection Technology (Intel IPT)
Yes
Intel Hyper Threading Technology (Intel HT Technology)
Yes
Intel AES New Instructions (Intel AES-NI)
Yes
Intel VT-x with Extended Page Tables (EPT)
Yes
Intel Virtualization Technology for Directed I/O (VT-d)
Yes
Intel Virtualization Technology (VT-x)
Yes
Intel TSX-NI
Yes
Intel Trusted Execution Technology
Yes
Intel Enhanced Halt State
Yes
Intel 64
Yes
Idle States
Yes
Execute Disable Bit
Yes
Enhanced Intel SpeedStep Technology
Yes
Embedded options available
Yes
Memory channels supported by processor
Dual
Memory types supported by processor
DDR3-SDRAM-DDR4-SDRAM
System requirements
Windows operating systems supported
Windows 10-Windows 7
Mac operating systems supported
Mac OS X 10.11 El Capitan
Operational conditions
Storage temperature (T-T)
-20 - 60 °C
Operating temperature (T-T)
5 - 40 °C
Operating relative humidity (H-H)
5 - 95%
Operating altitude
0 - 3048 m
Certificates
Certification
FCC Class B
CE Class B
BSMI Class B
Packaging data
Cables included
AC-LAN (RJ-45)
Other features
Processor ARK ID
91558
Synology DiskStation DS3018xs D1508 Ethernet LAN Desktop Black NAS
| Length | 24.30 cm |
| Width | 28.20 cm |
| Height | 16.60 cm |
| Weight | 5.200000 kgs |
