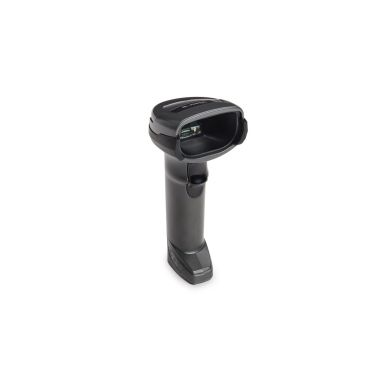

Bluetooth scanner, 2D, imager, DPM, connection: Bluetooth (BLE, class 5.2), incl.: battery, 2500 mAh

Type

Handheld bar code reader

Linear (1D) barcodes supported

Codabar, Code 11, Code 128, Code 39, Code 93, EAN 128, EAN 2, EAN 5, EAN-13, EAN-8, GS1 DataBar, MSI-Plessey, U.P.C., UPC-A, UPC-E, UPC-E0, UPC-E1

2D (matrix & stacked) barcodes supported

Aztec Code, Composite Codes, Data Matrix, Han Xin, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code, TLC-39

Yaw reading angle

-60 - 60°

Tilt reading angle

0 - 360°

Sensor type

LED

Scanner type

1D/2D

Pitch reading angle

-60 - 60°

Light levels (direct sunlight)

0 - 107000 lx

Optical sensor resolution (W x H)

1280 x 800 pixels

Horizontal field of view

31.6°

Vertical field of view

22.6°

Connectivity technology

Wireless

Bluetooth version

5.2

Bluetooth Low Energy (BLE)

Yes

Standard interfaces

Bluetooth

LED indicators

Yes

Built-in processor

Yes

Processor frequency

800 MHz

International Protection (IP) code

IP52

Product colour

Black

Image formats supported

BMP, JPEG, TIFF

Vibration function

Yes

Light levels (direct sunlight)

0 - 107000 lx

Type

Handheld bar code reader

LED indicators

Yes

International Protection (IP) code

IP52

Product colour

Black

Power source type

Battery

Charging time

2.25 h

Number of reads per charge

50000

Battery technology

Lithium-Ion (Li-Ion)

Battery capacity

2500 mAh

Width

66 mm

Depth

107 mm

Height

168 mm

Weight

225 g

Type

Handheld bar code reader

LED indicators

Yes

Built-in processor

Yes

Processor frequency

800 MHz

International Protection (IP) code

IP52

Product colour

Black

Warranty period

3 year(s)

Compliance certificates

Federal Communications Commission (FCC), Trade Agreements Act (TAA)

Storage temperature (T-T)

-40 - 70 °C

Operating temperature (T-T)

0 - 50 °C

Operating relative humidity (H-H)

5 - 95%

Storage relative humidity (H-H)

5 - 95%

Drop resistance

1.8 m

Light levels (direct sunlight)

0 - 107000 lx
