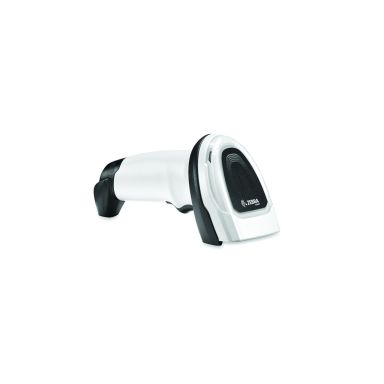

Zebra DS8108 Handheld bar code reader 1D/2D LED White
In Stock
|
Call For Price (0808 189 1246)
Scanning
Type
Handheld bar code reader
Linear (1D) barcodes supported
Codabar, Code 11, Code 128, Code 39, Code 93, GS1 DataBar Expanded, Interleaved 2 of 5, MSI, Plessey, U.P.C.
2D (matrix & stacked) barcodes supported
Aztec Code, Composite Codes, Data Matrix, Han Xin, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code, TLC-39
Yaw reading angle
0 - 60°
Wavelength
617 nm
Tilt reading angle
0 - 360°
Sensor type
LED
Scanner type
1D/2D
Pitch reading angle
0 - 60°
Ports & interfaces
PC connection
RS-232/USB
Connectivity technology
Wired
Standard interfaces
RS-232, USB, Keyboard wedge
Performance
International Protection (IP) code
IP42
Product colour
White
Design
Type
Handheld bar code reader
International Protection (IP) code
IP42
Product colour
White
Power
Power consumption
450 mA
Input voltage
5 V
Weight & dimensions
Width
66 mm
Depth
107 mm
Height
168 mm
Weight
154 g
Technical details
Type
Handheld bar code reader
International Protection (IP) code
IP42
Product colour
White
PC connection
RS-232/USB
Harmonized System (HS) code
84716070
Operational conditions
Storage temperature (T-T)
-40 - 70 °C
Operating temperature (T-T)
0 - 50 °C
Operating relative humidity (H-H)
5 - 95%
Logistics data
Harmonized System (HS) code
84716070
Zebra DS8108 Handheld bar code reader 1D/2D LED White
| Weight | 0.25 kgs |
