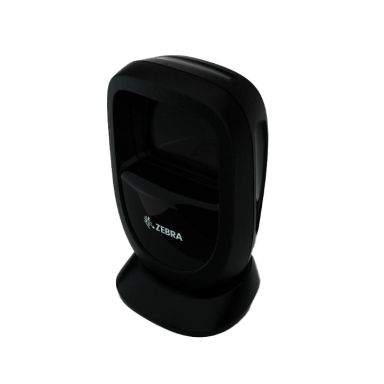

Zebra DS9300 Fixed bar code reader 1D/2D LED Black
In Stock
|
$178.78
$214.54 (Inc. VAT)
Scanning
Type
Fixed bar code reader
Linear (1D) barcodes supported
Codabar, Code 11, Code 128, Code 39, Code 93, EAN-13, GS1 DataBar, MSI, U.P.C.
2D (matrix & stacked) barcodes supported
Aztec Code, Composite Codes, Data Matrix, Dot Code A, Han Xin, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code, TLC-39
Working distance
66 cm
Sensor type
LED
Scanner type
1D/2D
Pitch reading angle
-60 - 60°
Light levels (direct sunlight)
0 - 107700 lx
Optical sensor resolution (W x H)
1280 x 800 pixels
Ports & interfaces
Connectivity technology
Wired
Standard interfaces
RS-232, USB
Performance
International Protection (IP) code
IP52
Product colour
Black
Certification
EN 50581:2012, RoHS 2011/65/EU (2015/863) - EN 50581:2012, IEC 63000, REACH 1907/2006, IEC 62368-1 2nd ed. EN 62368-1:2014/AC:2015, UL/IEC 60950-1, 2nd ed. CAN/CSA C22.2 No.60950-1, 2nd ed. IEC 62471:2006 (Ed.1.0), EN 62471:2008 (LED), FCC 47 CFR Part 15B, ICES-003, EN55032, EN55024, EN55035, VCCI, and SABS
Light levels (direct sunlight)
0 - 107700 lx
Design
Type
Fixed bar code reader
International Protection (IP) code
IP52
Product colour
Black
Certification
EN 50581:2012, RoHS 2011/65/EU (2015/863) - EN 50581:2012, IEC 63000, REACH 1907/2006, IEC 62368-1 2nd ed. EN 62368-1:2014/AC:2015, UL/IEC 60950-1, 2nd ed. CAN/CSA C22.2 No.60950-1, 2nd ed. IEC 62471:2006 (Ed.1.0), EN 62471:2008 (LED), FCC 47 CFR Part 15B, ICES-003, EN55032, EN55024, EN55035, VCCI, and SABS
Power
Power source type
RS-232, USB
Input voltage
5.5 V
Weight & dimensions
Width
86 mm
Depth
83 mm
Height
145 mm
Weight
318 g
Technical details
Type
Fixed bar code reader
International Protection (IP) code
IP52
Product colour
Black
Certification
EN 50581:2012, RoHS 2011/65/EU (2015/863) - EN 50581:2012, IEC 63000, REACH 1907/2006, IEC 62368-1 2nd ed. EN 62368-1:2014/AC:2015, UL/IEC 60950-1, 2nd ed. CAN/CSA C22.2 No.60950-1, 2nd ed. IEC 62471:2006 (Ed.1.0), EN 62471:2008 (LED), FCC 47 CFR Part 15B, ICES-003, EN55032, EN55024, EN55035, VCCI, and SABS
Harmonized System (HS) code
84716070
Operational conditions
Storage temperature (T-T)
-40 - 70 °C
Operating temperature (T-T)
0 - 50 °C
Operating relative humidity (H-H)
5 - 95%
Light levels (direct sunlight)
0 - 107700 lx
Logistics data
Harmonized System (HS) code
84716070
Zebra DS9300 Fixed bar code reader 1D/2D LED Black
