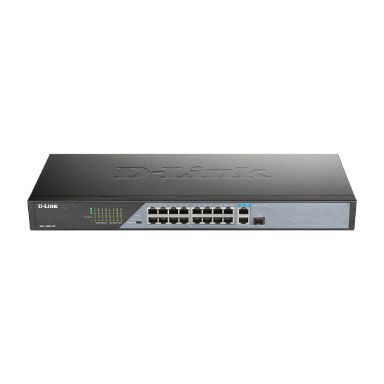

D-Link Fast Ethernet PoE Unmanaged Surveillance Switches
In Stock
|
Call For Price
(0808 189 1246)
Performance
Packet buffer memory
0.352 MB
Mean time between failures (MTBF)
30000 h
Technical details
Product colour
Black
Mean time between failures (MTBF)
30000 h
Management features
Switch type
Unmanaged
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity
16
Basic switching RJ-45 Ethernet ports type
Fast Ethernet (10/100)
Combo SFP ports quantity
1
Gigabit Ethernet (copper) ports quantity
1
Network
Networking standards
IEEE 802.3-IEEE 802.3ab-IEEE 802.3af-IEEE 802.3at-IEEE 802.3az-IEEE 802.3u-IEEE 802.3x-IEEE 802.3z
Auto MDI/MDI-X
Yes
10G support
No
Data transmission
Packet buffer memory
0.352 MB
MAC address table
4000 entries
Switching capacity
7.2 Gbit/s
Store-and-forward
Yes
Forwarding rate
5.36 Mpps
Certificates
Certification
IEC61000-4-5CE- RoHS- C-Tick
Memory
Packet buffer memory
0.352 MB
Design
Product colour
Black
LED indicators
Activity-Link-PoE-Power-Speed
Certification
IEC61000-4-5CE- RoHS- C-Tick
Number of fans
1 fan(s)
Indication
LED indicators
Activity-Link-PoE-Power-Speed
Power
Power consumption (max)
265 W
Power supply included
Yes
AC input voltage
100 - 240 V
AC input frequency
50/60 Hz
Power over Ethernet (PoE)
Power over Ethernet (PoE) power per port
30 W
Total Power over Ethernet (PoE) budget
230 W
Power over Ethernet (PoE) ports quantity
16
Power over Ethernet (PoE)
Yes
Operational conditions
Storage temperature (T-T)
-40 - 70 °C
Storage relative humidity (H-H)
0 - 95%
Operating temperature (T-T)
0 - 40 °C
Operating relative humidity (H-H)
0 - 95%
Heat dissipation
120 BTU/h
Weight & dimensions
Width
440 mm
Depth
178 mm
Height
44 mm
Weight
2.14 kg
D-Link Fast Ethernet PoE Unmanaged Surveillance Switches
| Length | 17.80 cm |
| Width | 44.00 cm |
| Height | 4.40 cm |
| Weight | 2.140000 kgs |
