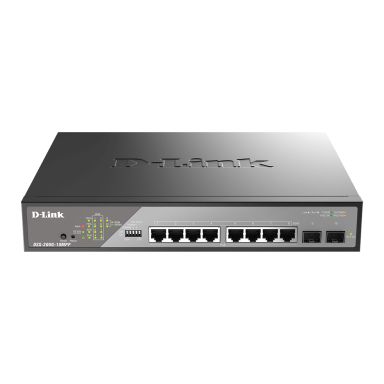

D-Link DSS-200G-10MPP/B network switch Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Grey
In Stock
|
$253.18
$303.82 (Inc. VAT)
Management features
Reset button
Yes
Multicast support
Yes
Traffic classification
Yes
Switch type
Managed
Web-based management
Yes
Quality of Service (QoS) support
Yes
MIB support
RFC768 UDP RFC791 IP RFC792 ICMP RFC793 TCP RFC826 ARP RFC1213 MIB II RFC1493 Bridage MIB RFC1907 SNMPv2 MIB RFC1215 MIB Traps Convention RFC2233 Interface Group MIB RFC2665 Ether-like MIB RFC4363 IEEE 802.1p MIB ZoneDefense MIB Private MIB RFC951 BootP client RFC1542 BootP/DHCP client RFC2236 IGMP Snooping
Switch layer
L2
Network
IGMP snooping
Yes
Networking standards
IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bt, IEEE 802.3u, IEEE 802.3x
Full duplex
Yes
Head-of-line (HOL) blocking
Yes
VLAN support
Yes
Spanning tree protocol
Yes
Rate limiting
Yes
Port mirroring
Yes
Number of VLANs
4094
Link aggregation
Yes
Flow control support
Yes
Ethernet LAN data rates
1000 Mbit/s
Broadcast storm control
Yes
Auto MDI/MDI-X
Yes
Auto-negotiation
Yes
Half duplex
Yes
Virtual LAN features
Voice VLAN
Virtual LAN features
VLAN support
Yes
Number of VLANs
4094
Virtual LAN features
Voice VLAN
Data transmission
Number of VLANs
4094
Jumbo frames
10240
Packet buffer memory
4.1 MB
MAC address table
8000 entries
Switching capacity
20 Gbit/s
Number of queues
4
Jumbo frames support
Yes
Forwarding rate
14.88 Mpps
Performance
Packet buffer memory
4.1 MB
Auto-negotiation
Yes
Noise level
50.6 dB
Memory type
DDR3-SDRAM
Mean time between failures (MTBF)
508112 h
Internal memory
128 MB
Flash memory
32 MB
Fanless
No
Technical details
Form factor
1U
Product colour
Grey
Noise level
50.6 dB
Mean time between failures (MTBF)
508112 h
Sustainability compliance
Yes
Sustainability certificates
BSMI, CB, CE, Federal Communications Commission (FCC), Low Voltage Directive (LVD), UL ECOLOGO, cUL
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity
8
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Installed SFP modules quantity
2
Security
SSH/SSL support
Yes
IGMP snooping
Yes
Queue scheduling algorithms
Strict Priority Queue (SPQ), Weighted Round Robin (WRR)
Password protection
Yes
Multicast features
Multicast support
Yes
Multicast features
Controllable multicast
Memory
Packet buffer memory
4.1 MB
Memory type
DDR3-SDRAM
Internal memory
128 MB
Flash memory
32 MB
Design
Reset button
Yes
Form factor
1U
Product colour
Grey
LED indicators
Activity, Alarm, Link, Power, Speed
Number of fans
1 fan(s)
Indication
LED indicators
Activity, Alarm, Link, Power, Speed
Power
Power consumption (max)
267.5 W
Power supply included
Yes
AC input voltage
100 - 240 V
AC input frequency
50/60 Hz
Input voltage
100 - 240 V
Input current
3 A
Power source
AC
Power over Ethernet (PoE)
Power over Ethernet (PoE) power per port
90 W
Total Power over Ethernet (PoE) budget
242 W
Power over Ethernet (PoE) ports quantity
8
Power over Ethernet (PoE)
Yes
Operational conditions
Storage temperature (T-T)
-40 - 70 °C
Storage relative humidity (H-H)
0 - 95%
Operating temperature (T-T)
-5 - 50 °C
Operating relative humidity (H-H)
0 - 95%
Heat dissipation
87 BTU/h
Weight & dimensions
Width
280 mm
Depth
230 mm
Height
44 mm
Weight
2.05 kg
Sustainability
Sustainability compliance
Yes
Sustainability certificates
BSMI, CB, CE, Federal Communications Commission (FCC), Low Voltage Directive (LVD), UL ECOLOGO, cUL
Other features
Input voltage
100 - 240 V
Ethernet LAN data rates
1000 Mbit/s
D-Link DSS-200G-10MPP/B network switch Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Grey
