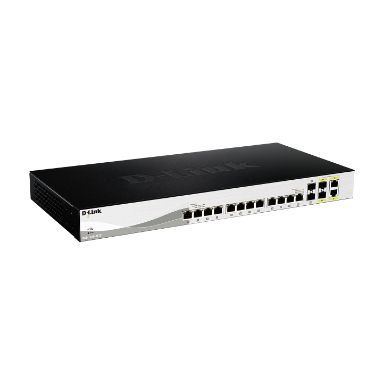

D-Link 10 Gigabit Ethernet Smart Managed Switches
0 Reviews
| Add your review
In Stock
|
Call For Price
(0808 189 1246)
| Management features | |
|---|---|
| Multicast support | Yes |
| ARP inspection | Yes |
| Switch type | Managed |
| Web-based management | Yes |
| System event log | Yes |
| Quality of Service (QoS) support | Yes |
| MIB support | RFC 783- RFC 951- RFC 1157- RFC 1213- RFC 1215- RFC 1350- RFC 1493- RFC 1769- RFC 1542- RFC 1901- RFC 1907- RFC 1908- RFC 2131- RFC 2138- RFC 2139- RFC 2233- RFC-2246- RFC 2475- RFC 2570- RFC 2575- RFC 2598- RFC 2618- RFC 2819- RFC 2865- RFC 3164- RFC 3195- RFC 3411-17 |
| Switch layer | L2 |
| Ports & interfaces | |
| Copper ethernet cabling technology | 10GBASE-T-100BASE-TX-1000BASE-T |
| SFP+ module slots quantity | 2 |
| Basic switching RJ-45 Ethernet ports quantity | 12 |
| Basic switching RJ-45 Ethernet ports type | 10G Ethernet (100/1000/10000) |
| Combo SFP ports quantity | 2 |
| Network | |
| IGMP snooping | Yes |
| Copper ethernet cabling technology | 10GBASE-T-100BASE-TX-1000BASE-T |
| Networking standards | IEEE 802.1D-IEEE 802.1Q-IEEE 802.1s-IEEE 802.1w-IEEE 802.1x-IEEE 802.3ab-IEEE 802.3ad-IEEE 802.3ae-IEEE 802.3an-IEEE 802.3az-IEEE 802.3p-IEEE 802.3u-IEEE 802.3z |
| Head-of-line (HOL) blocking | Yes |
| VLAN support | Yes |
| Spanning tree protocol | Yes |
| Port mirroring | Yes |
| Flow control support | Yes |
| Broadcast storm control | Yes |
| Auto MDI/MDI-X | Yes |
| 10G support | Yes |
| Virtual LAN features | Voice VLAN-MAC address-based VLAN-Port-based VLAN |
| Virtual LAN features | |
| VLAN support | Yes |
| Virtual LAN features | Voice VLAN-MAC address-based VLAN-Port-based VLAN |
| Data transmission | |
| Multicast Listener Discovery (MLD) snooping | MLD v |
| Jumbo frames | 16000 |
| MAC address table | 16000 entries |
| Switching capacity | 320 Gbit/s |
| Store-and-forward | Yes |
| Jumbo frames support | Yes |
| Forwarding rate | 238.08 Mpps |
| Technical details | |
| Product colour | Black |
| Rack mounting | Yes |
| Built-in processor | Yes |
| Shipping (inner) case width | 31.4 cm |
| Shipping (inner) case net weight | 13.6 kg |
| Shipping (inner) case length | 56.2 cm |
| Shipping (inner) case height | 38.3 cm |
| Quantity per shipping (inner) case | 3 pc(s) |
| Quantity per pallet (sea) | 90 pc(s) |
| Quantity per pallet (air) | 54 pc(s) |
| Pallet width | 120 cm |
| Pallet length | 110 cm |
| Pallet height (sea) | 2.05 m |
| Pallet height (air) | 128.4 cm |
| Pallet gross weight (sea) | 456 kg |
| Pallet gross weight (air) | 281.1 kg |
| Number of cartons per pallet (sea) | 30 pc(s) |
| Number of cartons per pallet (air) | 18 pc(s) |
| Optical fiber | |
| Fiber ethernet cabling technology | 1000BASE-X |
| Security | |
| IP-MAC-Port binding | Yes |
| Access Control List (ACL) rules | 256 |
| Security algorithms | 802.1x RADIUS-SNMP-SSL/TLS |
| IGMP snooping | Yes |
| Access Control List (ACL) | Yes |
| DHCP features | DHCP server-DHCP client |
| Multicast features | |
| Multicast support | Yes |
| Multicast Listener Discovery (MLD) snooping | MLD v |
| Protocols | |
| Supported network protocols | IPv4- IPv6 |
| Certificates | |
| Safety | cUL- CB- CE- CCC- BSMI |
| Certification | CE- FCC- C-Ticket- VCCI- BSMI- CCC |
| Design | |
| Safety | cUL- CB- CE- CCC- BSMI |
| Product colour | Black |
| LED indicators | Activity- Link- Power- Speed |
| Certification | CE- FCC- C-Ticket- VCCI- BSMI- CCC |
| Rack mounting | Yes |
| Performance | |
| Built-in processor | Yes |
| Indication | |
| LED indicators | Activity- Link- Power- Speed |
| Power | |
| Power consumption (max) | 90.81 W |
| AC input voltage | 120 - 230 V |
| AC input frequency | 50 - 60 Hz |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | No |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating temperature (T-T) | -5 - 50 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Weight & dimensions | |
| Width | 440 mm |
| Depth | 210 mm |
| Height | 44 mm |
| Weight | 3.15 kg |
| Packaging data | |
| Package width | 349 mm |
| Package depth | 546 mm |
| Package height | 96 mm |
| Package weight | 4.53 kg |
