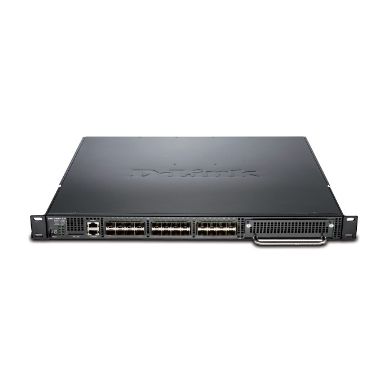

D-Link 24-Port Top of Rack 10 Gigabit Managed Switch with Expansion Slot
In Stock
|
Call For Price
(0808 189 1246)
Management features
Multicast support
Yes
Switch type
Managed
Web-based management
Yes
Quality of Service (QoS) support
Yes
MIB support
Yes
Switch layer
L3
Performance
Packet buffer memory
9 MB
Stackable
Yes
Technical details
Product colour
Black
Stackable
Yes
Rack mounting
Yes
Shipping (inner) case width
23.6" (60 cm)
Shipping (inner) case net weight
25.4 lbs (11.5 kg)
Shipping (inner) case length
30" (76.3 cm)
Shipping (inner) case height
6.69" (17 cm)
Quantity per shipping (inner) case
1 pcs
Shipping (inner) case gross weight
33.3 lbs (15.1 kg)
Quantity per pallet (sea)
12 pcs
Quantity per pallet (air)
12 pcs
Pallet width
47.2" (120 cm)
Pallet length
43.3" (110 cm)
Pallet height (sea)
45.5" (115.5 cm)
Pallet height (air)
45.5" (115.5 cm)
Pallet gross weight (sea)
441.6 lbs (200.3 kg)
Pallet gross weight (air)
441.6 lbs (200.3 kg)
Number of cartons per pallet (sea)
12
Number of cartons per pallet (air)
12
Ports & interfaces
SFP+ module slots quantity
24
Basic switching RJ-45 Ethernet ports quantity
1
SFP/SFP+ slots quantity
24
Console port
RJ-45
Network
Full duplex
Yes
Head-of-line (HOL) blocking
Yes
Spanning tree protocol
Yes
Port mirroring
Yes
Link aggregation
Yes
IP routing
Yes
Flow control support
Yes
Broadcast storm control
Yes
10G support
Yes
Data transmission
Packet buffer memory
9 MB
MAC address table
128000 entries
Supported data transfer rates
10 Gbit/s
Switching capacity
960 Gbit/s
Number of queues
8
Jumbo frames support
Yes
Maximum data transfer rate
10 Gbit/s
Security
Static port security
Yes
SSH/SSL support
Yes
MAC address filtering
Yes
Access Control List (ACL)
Yes
DHCP features
DHCP serverDHCP client
Multicast features
Multicast support
Yes
Protocols
Management protocols
SNMP / RMON
Certificates
Safety
CB cUL LVD
Electromagnetic compatibility
EMI/EMC FCC CE C-Tick IC VCCI
Memory
Packet buffer memory
9 MB
Design
Safety
CB cUL LVD
Product colour
Black
Stackable
Yes
LED indicators
Fan failPower
Electromagnetic compatibility
EMI/EMC FCC CE C-Tick IC VCCI
Rack mounting
Yes
Indication
LED indicators
Fan failPower
Power
AC input voltage
100 - 240 V
AC input frequency
50 - 60 Hz
Power consumption (typical)
115.3 W
Operational conditions
Storage temperature (T-T)
40 - 70 °C
Storage relative humidity (H-H)
0 - 95%
Operating temperature (T-T)
0 - 45 °C
Operating relative humidity (H-H)
0 - 95%
Heat dissipation
393.4 BTU/h
Weight & dimensions
Width
19.9" (506 mm)
Depth
17.3" (440 mm)
Height
1.73" (44 mm)
Weight
21.7 lbs (9.84 kg)
D-Link 24-Port Top of Rack 10 Gigabit Managed Switch with Expansion Slot
| Length | 44.00 cm |
| Width | 50.60 cm |
| Height | 4.40 cm |
| Weight | 9.840000 kgs |
