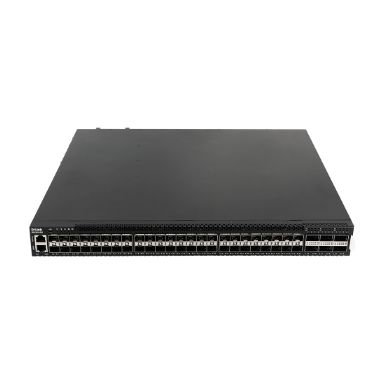

D-Link Layer 3 Stackable 10G Managed Switches
In Stock
|
Call For Price
(0808 189 1246)
Management features
Multicast support
Yes
ARP inspection
Yes
Switch type
Managed
Web-based management
Yes
Quality of Service (QoS) support
Yes
Switch layer
L3
Network
IGMP snooping
Yes
Networking standards
IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x
Full duplex
Yes
Head-of-line (HOL) blocking
Yes
VLAN support
Yes
Spanning tree protocol
Yes
Port mirroring
Yes
Link aggregation
Yes
IP routing
Yes
Flow control support
Yes
10G support
Yes
Virtual LAN features
MAC address-based VLAN, Port-based VLAN, Protocol-based VLAN
Virtual LAN features
VLAN support
Yes
Virtual LAN features
MAC address-based VLAN, Port-based VLAN, Protocol-based VLAN
Performance
Packet buffer memory
32 MB
Stackable
Yes
Physical stacking (units)
12
Virtual stacking (units)
32
Noise level
79.4 dB
Mean time between failures (MTBF)
94262 h
Harmonized System (HS) code
85176990
Technical details
Physical stacking (units)
12
Virtual stacking (units)
32
Form factor
1U
Product colour
Black
Stackable
Yes
Noise level
79.4 dB
Mean time between failures (MTBF)
94262 h
Rack mounting
Yes
Ports & interfaces
SFP+ module slots quantity
48
Basic switching RJ-45 Ethernet ports type
No
USB 2.0 ports quantity
1
Console port
RJ-45
QSFP28 ports quantity
6
Data transmission
Jumbo frames
9436
Packet buffer memory
32 MB
MAC address table
294912 entries
Switching capacity
2211.84 Gbit/s
Number of queues
8
Jumbo frames support
Yes
Static route
Yes
Forwarding rate
1607.04 Mpps
Security
BPDU filtering/protection
Yes
SSH/SSL support
Yes
IGMP snooping
Yes
Access Control List (ACL)
Yes
DHCP features
DHCP client, DHCP server, DHCP snooping
Multicast features
Multicast support
Yes
Protocols
Management protocols
SNMP v1/v2c/v3
Certificates
Electromagnetic compatibility
FCC, CE, C-Tick, IC, VCCI
Certification
CB, cUL, LVD
Memory
Packet buffer memory
32 MB
Design
Form factor
1U
Product colour
Black
Stackable
Yes
Electromagnetic compatibility
FCC, CE, C-Tick, IC, VCCI
Certification
CB, cUL, LVD
Rack mounting
Yes
Number of fans
5 fan(s)
Power
Power consumption (max)
320.8 W
Power supply included
Yes
AC input voltage
110 - 240 V
AC input frequency
50 - 60 Hz
Power consumption (typical)
120.6 W
Redundant power supply (RPS) support
Yes
Power over Ethernet (PoE)
Power over Ethernet (PoE)
No
Operational conditions
Storage temperature (T-T)
-40 - 70 °C
Storage relative humidity (H-H)
0 - 95%
Operating temperature (T-T)
0 - 45 °C
Operating relative humidity (H-H)
0 - 95%
Heat dissipation
1083 BTU/h
Weight & dimensions
Width
441 mm
Depth
487.4 mm
Height
43.5 mm
Weight
9.8 kg
Logistics data
Harmonized System (HS) code
85176990
D-Link Layer 3 Stackable 10G Managed Switches
