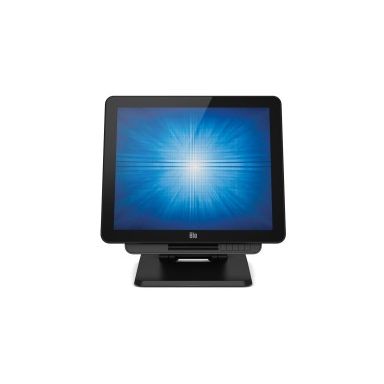

Elo Touch Solution PCAP X2 43.2 cm (17") 1280 x 1024 pixels Touchscreen 2.41 GHz J1900
0 Reviews
| Add your review
In Stock
|
Call For Price
(0808 189 1246)
| Display | |
|---|---|
| Display number of colours | 16.78 million colours |
| Viewing angle vertical | 160° |
| Viewing angle horizontal | 170° |
| Touchscreen technology | Projected capacitive system |
| Touchscreen | Yes |
| Response time | 5 ms |
| Effective viewing area | 337.92 x 270.36 mm |
| Display resolution | 1280 x 1024 pixels |
| Display diagonal | 43.2 cm (17") |
| Display brightness | 212.5 cd/m² |
| Contrast ratio (typical) | 41.667361111111 |
| Aspect ratio | 0.21111111111111 |
| Processor | |
| Processor cores | 4 |
| Processor cache | 2 MB |
| Processor frequency | 2.41 GHz |
| Processor family | Intel Celeron |
| Processor model | J1900 |
| Memory | |
| Internal memory type | DDR3L-SDRAM |
| Number of memory slots | 2 |
| Memory slots type | SO-DIMM |
| Internal memory | 4 GB |
| Memory clock speed | 1600 MHz |
| Maximum internal memory | 16 GB |
| Storage | |
| Total storage capacity | 128 GB |
| Storage media | SSD |
| Graphics | |
| Graphics adapter manufacturer | Intel |
| Graphics adapter | HD Graphics |
| Features | |
| Certification | UL cUL FCC IC TUV CE CB CoC RCM VCCI CCC RCM SRRC |
| Multimedia | |
| Built-in speaker(s) | Yes |
| Number of speakers | 2 |
| Network | |
| Ethernet LAN | Yes |
| Wi-Fi standards | 802.11b802.11gWi-Fi 4 (802.11n) |
| Wi-Fi | Yes |
| Hard drive | |
| Total storage capacity | 128 GB |
| Ports & interfaces | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| VGA (D-Sub) ports quantity | 2 |
| USB 2.0 ports quantity | 4 |
| RS-232 ports | 1 |
| Microphone in | Yes |
| Line-out | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| DC-in jack | Yes |
| Video | |
| Graphics adapter manufacturer | Intel |
| Graphics adapter | HD Graphics |
| Software | |
| Operating system installed | Windows 7 Professional |
| Power | |
| AC input voltage | 100-240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (typical) | 38 W |
| Operational conditions | |
| Storage temperature (T-T) | -20 - 60 °C |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) | 0 - 35 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Certificates | |
| Certification | UL cUL FCC IC TUV CE CB CoC RCM VCCI CCC RCM SRRC |
| Ergonomics | |
| Wall mountable | Yes |
| Mean time between failures (MTBF) | 50000 h |
| Audio | |
| Built-in speaker(s) | Yes |
| Number of speakers | 2 |
| Weight & dimensions | |
| Width | 397.2 mm |
| Depth | 67.7 mm |
| Height | 354.2 mm |
| Width (with stand) | 397.3 mm |
| Depth (with stand) | 251.7 mm |
| Height (with stand) | 391.1 mm |
| Weight | 4.66 kg |
| Weight (with stand) | 7.24 kg |
| Package width | 517 mm |
| Package depth | 367 mm |
| Package height | 487 mm |
| Package weight | 11.5 kg |
| Packaging data | |
| Package width | 517 mm |
| Package depth | 367 mm |
| Package height | 487 mm |
| Package weight | 11.5 kg |
| Technical details | |
| Wall mountable | Yes |
| Sustainability certificates | ENERGY STAR |
| Endurance | |
| Mean time between failures (MTBF) | 50000 h |
Elo Touch Solution PCAP X2 43.2 cm (17") 1280 x 1024 pixels Touchscreen 2.41 GHz J1900
