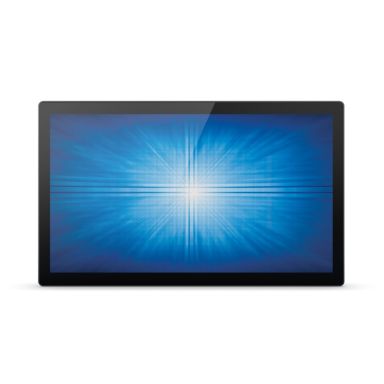

Elo Touch Solutions 2794L 68.6 cm (27") LCD 270 cd/m² Full HD Black Touchscreen
In Stock
|
Call For Price
(0808 189 1246)
Display
LED backlight
Yes
Panel type
TFT
Display number of colours
16.78 million colours
Number of simultaneous touchpoints
10
Touchscreen
Yes
Display technology
LCD
Display diagonal
68.6 cm (27")
Display resolution
1920 x 1080 pixels
Display brightness
270 cd/m²
HD type
Full HD
Response time
12 ms
Contrast ratio (typical)
3000:1
Viewing angle, horizontal
178°
Viewing angle, vertical
178°
Native aspect ratio
16:9
Maximum refresh rate
65 Hz
Touchscreen technology
Projected capacitive system
Ports & interfaces
DisplayPort version
1.1a
HDMI version
1.3a
DisplayPorts quantity
1
HDMI ports quantity
1
Ethernet LAN (RJ-45) ports
1
Design
Product colour
Black
VESA mounting
Yes
Screen shape
Flat
Wall mountable
Yes
Performance
Mean time between failures (MTBF)
50000 h
On Screen Display (OSD) languages
Simplified Chinese, Traditional Chinese, German, English, Spanish, French, Italian, Japanese
On Screen Display (OSD)
Yes
Power
Power consumption (max)
27 W
Power consumption (off)
0.5 W
Power consumption (typical)
21 W
Energy efficiency scale
A to G
Energy efficiency class (SDR)
G
Energy consumption (SDR) per 1000 hours
30 kWh
Packaging data
Package width
782 mm
Package depth
200 mm
Package height
530 mm
Package weight
10.2 kg
Cables included
HDMI, USB, VGA
Packaging content
Cables included
HDMI, USB, VGA
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Operating relative humidity (H-H)
20 - 80%
Storage temperature (T-T)
-20 - 60 °C
Storage relative humidity (H-H)
10 - 95%
Technical details
VESA mounting
Yes
Power supply type
DC
Panel type
TFT
DisplayPort version
1.1a
Connection to PC
Yes
Depth (without stand)
388.4 mm
Number of simultaneous touchpoints
10
Weight (without stand)
7.3 kg
Height (without stand)
40.6 mm
Display viewable area (HxV)
597.6 x 336.15 mm
Sustainability certificates
RoHS
Compliance certificates
RoHS
Logistics data
Harmonized System (HS) code
85285210
Features
Harmonized System (HS) code
85285210
Wall mountable
Yes
Other features
Power supply type
DC
Panel type
TFT
DisplayPort version
1.1a
Connection to PC
Yes
Depth (without stand)
388.4 mm
Number of simultaneous touchpoints
10
Weight (without stand)
7.3 kg
Height (without stand)
40.6 mm
Display viewable area (HxV)
597.6 x 336.15 mm
Viewable size, vertical
33.6 cm
Viewable size, horizontal
59.8 cm
Power consumption (max)
27 W
Mean time between failures (MTBF)
50000 h
Display technology
LCD
Digital vertical frequency
50 - 75 Hz
Digital horizontal frequency
30 - 82 kHz
Built-in camera
No
Backlight type
LED
Maximum refresh rate
65 Hz
Energy efficiency scale
A to G
Elo Touch Solutions 2794L 68.6 cm (27") LCD 270 cd/m² Full HD Black Touchscreen
