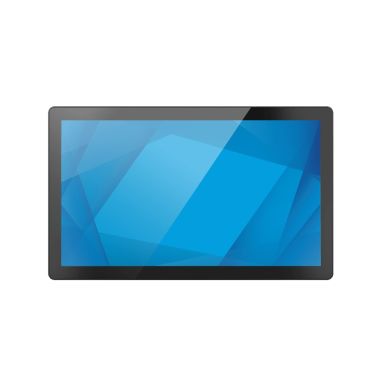

Elo Touch Solutions I-Series E607503 All-in-One PC/workstation Intel® Core™ i5 i5-1245UL 54.6 cm (21.5") 1920 x 1080 pixels Touchscreen 8 GB DDR5-SDRAM 128 GB SSD Wi-Fi 6 (802.11ax) Black
In Stock
|
Call For Price
(0808 189 1246)
Display
HD type
Full HD
Panel type
LCD
Display diagonal
54.6 cm (21.5")
Display resolution
1920 x 1080 pixels
Touchscreen
Yes
Display brightness
250 cd/m²
Native aspect ratio
16:9
Processor
Processor cache type
Smart Cache
Processor frequency
1.6 GHz
Processor family
Intel® Core i5
Processor model
i5-1245UL
Processor cores
10
Processor cache
12 MB
Processor manufacturer
Intel
Processor base power
15 W
Maximum turbo power
28 W
Efficient-core Max Turbo Frequency
2.5 GHz
Performance-core Max Turbo Frequency
4.4 GHz
Performance cores
2
Efficient cores
8
Memory
Memory form factor
DIMM/SO-DIMM
Internal memory
8 GB
Memory layout (slots x size)
1 x 8 GB
Maximum internal memory
32 GB
Internal memory type
DDR5-SDRAM
Memory slots
2
Memory slots type
SO-DIMM
Memory clock speed
4800 MHz
Hard drive
Storage media
SSD
Total storage capacity
128 GB
Storage
Storage media
SSD
Total storage capacity
128 GB
Optical drive type
No
SSD capacity
128 GB
Number of SSDs installed
1
Total SSDs capacity
128 GB
Graphics
Discrete graphics card
No
On-board graphics card family
Intel Iris Xe Graphics
On-board graphics card
Yes
Discrete graphics card model
Not available
On-board graphics card model
Intel Iris Xe Graphics
On-board GPU manufacturer
Intel
Audio
Number of speakers
2
Built-in speaker(s)
Yes
RMS rated power
4 W
Camera
Built-in camera
No
Optical drive
Optical drive type
No
Network
Top Wi-Fi standard
Wi-Fi 6 (802.11ax)
Wi-Fi
Yes
Wi-Fi standards
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Ethernet LAN
Yes
Ethernet LAN data rates
10,100,1000 Mbit/s
Bluetooth
Yes
Bluetooth version
5.2
Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
1
USB 2.0 ports quantity
4
Headphone outputs
1
Ethernet LAN (RJ-45) ports
1
DC-in jack
Yes
On/off button
Yes
Technical details
Product type
All-in-One PC
Product colour
Black
Sustainability compliance
Yes
Sustainability certificates
RoHS
Compliance certificates
RoHS
Security
Trusted Platform Module (TPM)
Yes
HDD user password
Yes
Design
Product colour
Black
On/off button
Yes
Performance
Product type
All-in-One PC
Trusted Platform Module (TPM)
Yes
HDD user password
Yes
Trusted Platform Module (TPM) version
2.0
Software
Operating system installed
No
Power
AC adapter power
180 W
AC adapter frequency
50 - 60 Hz
AC adapter input voltage
100 - 240 V
AC adapter output voltage
24 V
Multimedia
Built-in camera
No
Weight & dimensions
Package width
643 mm
Package depth
214 mm
Package height
439 mm
Package weight
7.6 kg
Width (with stand)
525.8 mm
Depth (with stand)
39.6 mm
Height (with stand)
321.1 mm
Weight (with stand)
6.1 kg
Packaging data
Package width
643 mm
Package depth
214 mm
Package height
439 mm
Package weight
7.6 kg
Operational conditions
Operating temperature (T-T)
0 - 35 °C
Storage temperature (T-T)
-20 - 60 °C
Operating relative humidity (H-H)
20 - 80%
Storage relative humidity (H-H)
5 - 95%
Certificates
Certification
Canada cUL, IC; United States UL, FCC; Germany TUV; Europe CE; Australia RCM; United Kingdom UKCA; International CB; Argentina S-Mark; Brazil; ANATEL; Japan VCCI, MIC; China CCC, SRRC; Mexico NOM; RoHS CoC
Compliance certificates
RoHS
Sustainability
Sustainability compliance
Yes
Sustainability certificates
RoHS
Other features
On-board graphics card
Yes
SSD capacity
128 GB
Processor manufacturer
Intel
Number of SSDs installed
1
Elo Touch Solutions I-Series E607503 All-in-One PC/workstation Intel® Core™ i5 i5-1245UL 54.6 cm (21.5") 1920 x 1080 pixels Touchscreen 8 GB DDR5-SDRAM 128 GB SSD Wi-Fi 6 (802.11ax) Black
