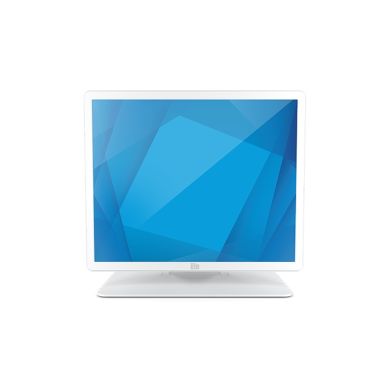

Elo Touch Solutions 1903LM 48.3 cm (19") 1280 x 1024 pixels SVGA LCD Touchscreen White
In Stock
|
$832.47
$998.96 (Inc. VAT)
Audio
Built-in speaker(s)
Yes
RMS rated power
2 W
Performance
Built-in speaker(s)
Yes
RMS rated power
2 W
Mean time between failures (MTBF)
50000 h
Built-in microphone
No
Built-in camera
No
AMD FreeSync
No
NVIDIA G-SYNC
No
Display
Screen shape
Flat
Display number of colours
16.78 million colours
Native aspect ratio
0.21111111111111
Maximum refresh rate
70 Hz
HD type
SVGA
Display technology
LCD
Viewing angle- horizontal
178°
Viewing angle- vertical
178°
Viewable size- horizontal
37.5 cm
Viewable size- vertical
30 cm
Digital horizontal frequency
30 - 82 kHz
Digital vertical frequency
50 - 75 Hz
Display resolution
1280 x 1024 pixels
Response time
14 ms
Display diagonal
48.3 cm (19")
Contrast ratio (typical)
41.667361111111
Touchscreen
Yes
Number of simultaneous touchpoints
10
Panel type
TFT
Display diagonal (metric)
48 cm
Touch technology
Multi-touch
Display brightness
225 cd/m²
Anti-glare screen
Yes
Management features
On Screen Display (OSD)
Yes
Number of OSD languages
8
Multimedia
Number of speakers
2
Built-in speaker(s)
Yes
RMS rated power
2 W
Built-in microphone
No
Built-in camera
No
Design
Product colour
White
International Protection (IP) code
IP54
Mean time between failures (MTBF)
50000 h
Camera
Built-in camera
No
Ports & interfaces
VGA (D-Sub) ports quantity
1
HDMI ports quantity
1
HDMI
Yes
Technical details
Mean time between failures (MTBF)
50000 h
HDMI
Yes
Display viewable area (HxV)
374.78 x 299.83 mm
Built-in microphone
No
Product colour
White
Sustainability certificates
RoHS
Power supply type
DC
Weight (with stand)
6.3 kg
Touchscreen
Yes
Number of simultaneous touchpoints
10
Ergonomics
Wall mountable
Yes
VESA mounting
Yes
LED indicators
Power
On Screen Display (OSD)
Yes
Number of OSD languages
8
Power
Power supply type
DC
Power consumption (max)
16.36 W
Power consumption (standby)
0.79 W
Power consumption (typical)
14.53 W
Power consumption (off)
0.37 W
Energy efficiency scale
A to G
Energy efficiency class (SDR)
F
Energy consumption (SDR) per 1000 hours
14 kWh
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-20 - 60 °C
Operating relative humidity (H-H)
20 - 80%
Storage relative humidity (H-H)
10 - 95%
Packaging content
Cables included
HDMI- USB- VGA
Weight & dimensions
Width (with stand)
429.6 mm
Depth (with stand)
193.4 mm
Height (with stand)
429.6 mm
Weight (with stand)
6.3 kg
Weight (without stand)
4.3 kg
Package width
527 mm
Package depth
260 mm
Package height
482 mm
Package weight
9.8 kg
Elo Touch Solutions 1903LM 48.3 cm (19") 1280 x 1024 pixels SVGA LCD Touchscreen White
