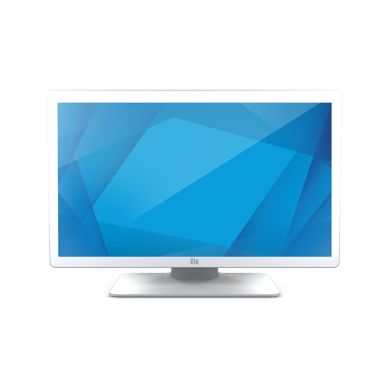

Elo Touch Solutions 2703LM 68.6 cm (27") LCD 270 cd/m² Full HD White Touchscreen
In Stock
|
Call For Price
(0808 189 1246)
Display
Panel type
TFT
Display number of colours
16.78 million colours
Number of simultaneous touchpoints
10
Touchscreen
Yes
Display technology
LCD
Display diagonal
68.6 cm (27")
Display resolution
1920 x 1080 pixels
Display brightness
270 cd/m²
HD type
Full HD
Response time
14 ms
Contrast ratio (typical)
1000:1
Viewing angle, horizontal
178°
Viewing angle, vertical
178°
Display diagonal (metric)
68.6 cm
Supported graphics resolutions
640 x 400, 640 x 480 (VGA), 720 x 400, 800 x 500, 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 800 (WXGA), 1366 x 768, 1440 x 900 (WXGA+), 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080)
Native aspect ratio
16:9
Anti-glare screen
Yes
Maximum refresh rate
70 Hz
Touchscreen technology
Projected capacitive system
Ports & interfaces
HDMI ports quantity
1
Audio
RMS rated power
2 W
Built-in speaker(s)
Yes
Design
Product colour
White
VESA mounting
Yes
Anti-glare screen
Yes
Screen shape
Flat
Wall mountable
Yes
Performance
International Protection (IP) code
IP54
Mean time between failures (MTBF)
50000 h
On Screen Display (OSD) languages
Simplified Chinese, Traditional Chinese, German, English, Spanish, French, Italian, Japanese
On Screen Display (OSD)
Yes
Number of OSD languages
8
Power
Power consumption (max)
22.4 W
Power consumption (off)
0.24 W
Power consumption (typical)
17.37 W
Power consumption (standby)
1 W
Energy efficiency scale
A to G
Energy efficiency class (SDR)
E
Energy consumption (SDR) per 1000 hours
21 kWh
Weight & dimensions
Width (with stand)
647.6 mm
Height (with stand)
450.9 mm
Depth (with stand)
233 mm
Weight (with stand)
10.3 kg
Packaging data
Package width
764 mm
Package depth
560 mm
Package height
322 mm
Package weight
14.3 kg
Cables included
HDMI, USB, VGA
Packaging content
Cables included
HDMI, USB, VGA
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Operating relative humidity (H-H)
20 - 80%
Storage temperature (T-T)
-20 - 60 °C
Storage relative humidity (H-H)
10 - 95%
Technical details
VESA mounting
Yes
Power supply type
DC
Panel type
TFT
Number of simultaneous touchpoints
10
Weight (without stand)
7.13 kg
Display viewable area (HxV)
597.88 x 336.31 mm
Weight (with stand)
10.3 kg
Sustainability certificates
RoHS
Compliance certificates
RoHS
Features
Wall mountable
Yes
Other features
Power supply type
DC
Panel type
TFT
Number of simultaneous touchpoints
10
Weight (without stand)
7.13 kg
Display viewable area (HxV)
597.88 x 336.31 mm
Width (with stand)
647.6 mm
Viewable size, vertical
33.6 cm
Viewable size, horizontal
59.8 cm
Power consumption (max)
22.4 W
Mean time between failures (MTBF)
50000 h
LED indicators
Power
Height (with stand)
450.9 mm
Display technology
LCD
Depth (with stand)
233 mm
Built-in camera
No
Weight (with stand)
10.3 kg
Maximum refresh rate
70 Hz
Energy efficiency scale
A to G
Elo Touch Solutions 2703LM 68.6 cm (27") LCD 270 cd/m² Full HD White Touchscreen
