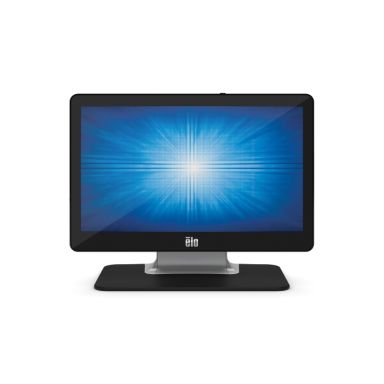

Elo Touch Solution 1302L touch screen monitor 33.8 cm (13.3") 1920 x 1080 pixels Black Multi-touch Tabletop
In Stock
|
$449.91
$539.89 (Inc. VAT)
Display
Display number of colours
16.78 million colours
Number of simultaneous touchpoints
10
Touchscreen
Yes
Display technology
LCD/TFT
Display diagonal
33.8 cm (13.3")
Display resolution
1920 x 1080 pixels
Display brightness
300 cd/m²
HD type
Full HD
Response time
25 ms
Contrast ratio (typical)
800:1
Viewing angle, horizontal
170°
Viewing angle, vertical
170°
Supported video modes
1080p
Supported graphics resolutions
640 x 400, 640 x 480 (VGA), 720 x 400, 720 x 576, 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 800, 1280 x 960, 1360 x 768 (WXGA), 1366 x 768, 1440 x 900, 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080)
Touchscreen technology
Capacitive
Ports & interfaces
HDMI version
1.3a
HDMI ports quantity
1
Micro-USB ports quantity
4
Audio
RMS rated power
1 W
Built-in speaker(s)
Yes
Design
Product colour
Black
Panel mounting interface
75 x 75 mm
Certification
RCM, cUL, IC, CCC, CE, BIS, VCCI, KCC, NOM, BSMI, UL, FCC, CB, WEEE, REACH
VESA mounting
Yes
Screen shape
Flat
Wall mountable
Yes
Performance
International Protection (IP) code
IPX1
On Screen Display (OSD) languages
Simplified Chinese, Traditional Chinese, German, English, Spanish, French, Italian, Japanese
Number of OSD languages
8
Power
Power consumption (off)
0.18 W
Power consumption (typical)
9.8 W
Power consumption (standby)
1.35 W
AC input voltage
100 - 240 V
AC input frequency
50 - 60 Hz
Weight & dimensions
Width (with stand)
259.6 mm
Height (with stand)
150 mm
Depth (with stand)
326.1 mm
Weight (with stand)
2.32 kg
Packaging data
Package width
333 mm
Package depth
415 mm
Package height
220 mm
Package weight
4.62 kg
Quick start guide
Yes
Cables included
AC, HDMI, USB Type-A to USB Type-C
Packaging content
Quick start guide
Yes
Cables included
AC, HDMI, USB Type-A to USB Type-C
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Operating relative humidity (H-H)
20 - 80%
Storage temperature (T-T)
-20 - 60 °C
Storage relative humidity (H-H)
10 - 95%
Certificates
Certification
RCM, cUL, IC, CCC, CE, BIS, VCCI, KCC, NOM, BSMI, UL, FCC, CB, WEEE, REACH
Technical details
VESA mounting
Yes
Power supply type
AC/DC
Dimensions (W x D x H) with stand
259.57 x 326.06 x 150 mm
Depth (without stand)
211.3 mm
Number of simultaneous touchpoints
10
Weight (without stand)
1.22 kg
Height (without stand)
25.1 mm
Full HD
Yes
Display viewable area (HxV)
293.76 x 165.24 mm
Weight (with stand)
2.32 kg
Sustainability certificates
RoHS
Compliance certificates
RoHS
Features
Wall mountable
Yes
Other features
Power supply type
AC/DC
Dimensions (W x D x H) with stand
259.57 x 326.06 x 150 mm
Depth (without stand)
211.3 mm
Number of simultaneous touchpoints
10
Weight (without stand)
1.22 kg
Height (without stand)
25.1 mm
Display viewable area (HxV)
293.76 x 165.24 mm
Width (with stand)
259.6 mm
Height (with stand)
150 mm
Headphone outputs
1
Display technology
LCD/TFT
Digital vertical frequency
60 - 60 Hz
Digital horizontal frequency
30 - 75 kHz
Depth (with stand)
326.1 mm
Built-in microphone
No
Built-in camera
No
Quick start guide
Yes
Aspect ratio
16:9
AC adapter included
Yes
Weight (with stand)
2.32 kg
Micro-USB ports quantity
4
Elo Touch Solution 1302L touch screen monitor 33.8 cm (13.3") 1920 x 1080 pixels Black Multi-touch Tabletop
