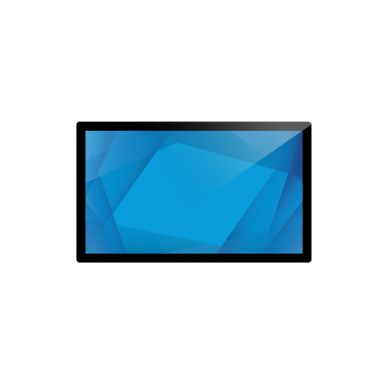

Elo Touch Solutions 3203L 80 cm (31.5") 1920 x 1080 pixels Full HD LED Touchscreen Multi-user Black
In Stock
|
Call For Price
(0808 189 1246)
Display
HDCP
Yes
Screen shape
Flat
Display number of colours
16.78 million colours
Native aspect ratio
0.67291666666667
Maximum refresh rate
60 Hz
HD type
Full HD
Display technology
LED
Viewing angle- horizontal
178°
Viewing angle- vertical
178°
Horizontal scan range
30 - 135 kHz
Vertical scan range
24 - 64 Hz
Display resolution
1920 x 1080 pixels
Response time
8 ms
Display diagonal
80 cm (31.5")
Contrast ratio (typical)
125.00069444444
Touchscreen type
Multi-user
Touchscreen
Yes
Number of simultaneous touchpoints
40
Panel type
TFT
Touch technology
Multi-touch
Display brightness
382 cd/m²
Audio
Built-in speaker(s)
Yes
RMS rated power
10 W
Performance
Built-in speaker(s)
Yes
RMS rated power
10 W
Mean time between failures (MTBF)
50000 h
Built-in microphone
No
Built-in camera
No
AMD FreeSync
No
NVIDIA G-SYNC
No
Management features
On Screen Display (OSD)
Yes
Network
Ethernet LAN (RJ-45) ports
1
Multimedia
Number of speakers
2
Built-in speaker(s)
Yes
RMS rated power
10 W
Built-in microphone
No
Built-in camera
No
Design
Product colour
Black
Mean time between failures (MTBF)
50000 h
Camera
Built-in camera
No
Ports & interfaces
Built-in USB hub
Yes
Headphone out
Yes
HDMI ports quantity
2
DisplayPorts quantity
1
HDCP
Yes
Headphone outputs
1
HDMI
Yes
HDMI version
1.4
DisplayPort version
1.2
USB Touch ports quantity
1
USB Touch port
Yes
Ethernet LAN (RJ-45) ports
1
Technical details
Height (without stand)
459.1 mm
Depth (without stand)
57.2 mm
Width (without stand)
764.7 mm
Placement supported
Horizontal/Vertical
Mean time between failures (MTBF)
50000 h
HDMI
Yes
Display viewable area (HxV)
698.4 x 392.9 mm
Built-in microphone
No
Product colour
Black
Sustainability certificates
ENERGY STAR
Power supply type
AC
Touchscreen type
Multi-user
Touchscreen
Yes
Number of simultaneous touchpoints
40
Ergonomics
Wall mountable
Yes
VESA mounting
Yes
Panel mounting interface
400 x 400 mm
On Screen Display (OSD)
Yes
Power
Power supply type
AC
AC input voltage
100-240 V
AC input frequency
50 - 60 Hz
Power consumption (standby)
1.43 W
Power consumption (typical)
44 W
Power consumption (off)
0.29 W
Energy efficiency scale
A to G
Energy efficiency class (SDR)
F
Energy consumption (SDR) per 1000 hours
29 kWh
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-20 - 60 °C
Operating relative humidity (H-H)
20 - 80%
Storage relative humidity (H-H)
10 - 90%
Packaging content
Cables included
AC- HDMI- USB
Weight & dimensions
Height (without stand)
459.1 mm
Depth (without stand)
57.2 mm
Width (without stand)
764.7 mm
Weight (without stand)
11.9 kg
Package width
890 mm
Package depth
160 mm
Package height
640 mm
Package weight
15.3 kg
Elo Touch Solutions 3203L 80 cm (31.5") 1920 x 1080 pixels Full HD LED Touchscreen Multi-user Black
