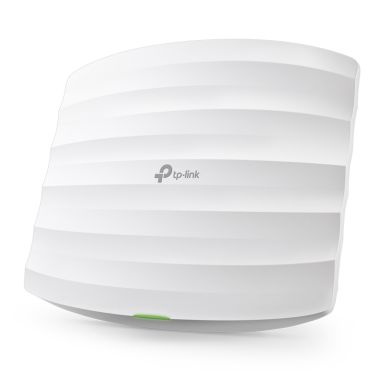

TP-LINK EAP225 300 Mbit/s Power over Ethernet (PoE) White
In Stock
|
$36.08
$43.30 (Inc. VAT)
Data transmission
Ethernet LAN data rates
10-100 Mbit/s
Maximum data transfer rate
300 Mbit/s
Performance
2.4 GHz
Yes
5 GHz
No
Wireless isolation
Yes
Wi-Fi Multimedia (WMM)/(WME)
Yes
Automatic channel selection
Yes
Syslog
Yes
Reset button
Yes
Frequency band
2.4 - 2.4835 GHz
Web-based management
Yes
VLAN support
Yes
Receiver sensitivity
300M: -71dBm@10% PER 150M: -75dBm@10% PER 54M: -78dBm@10% PER 11M: -93dBm@8% PER 6M: -92dBm@10% PER 1M: -96dBm@8% PER
Rate limiting
Yes
Quality of Service (QoS) support
Yes
Networking standards
IEEE 802.11b-IEEE 802.11g-IEEE 802.11n-IEEE 802.1x
Ethernet LAN data rates
10-100 Mbit/s
Certification
FCC- RoHS
Maximum data transfer rate
300 Mbit/s
Remote Authentication Dial-In User Service (RADIUS)
Yes
Wireless LAN features
Frequency band
2.4 - 2.4835 GHz
Network
Networking standards
IEEE 802.11b-IEEE 802.11g-IEEE 802.11n-IEEE 802.1x
Management features
VLAN support
Yes
Rate limiting
Yes
Quality of Service (QoS) support
Yes
Syslog
Yes
Web-based management
Yes
Certificates
Certification
FCC- RoHS
Features
2.4 GHz
Yes
5 GHz
No
Wireless isolation
Yes
Wi-Fi Multimedia (WMM)/(WME)
Yes
Automatic channel selection
Yes
Frequency band
2.4 - 2.4835 GHz
VLAN support
Yes
Receiver sensitivity
300M: -71dBm@10% PER 150M: -75dBm@10% PER 54M: -78dBm@10% PER 11M: -93dBm@8% PER 6M: -92dBm@10% PER 1M: -96dBm@8% PER
Rate limiting
Yes
Quality of Service (QoS) support
Yes
Networking standards
IEEE 802.11b-IEEE 802.11g-IEEE 802.11n-IEEE 802.1x
Ethernet LAN data rates
10-100 Mbit/s
Cabling technology
10/100Base-T(X)
Maximum data transfer rate
300 Mbit/s
Transmitting power (CE)
21 dBm
Maximum data transfer rate (2.4 GHz)
300 Mbit/s
Virtual LAN features
SSID-based VLAN assignment
Security
Number of SSID supported
8
Security algorithms
64-bit WEP-128-bit WEP-152-bit WEP-HTTPS-SNMP-SNMPv2-SSH-WPA-WPA-PSK-WPA2-Enterprise-WPA2-PSK
MAC address filtering
Yes
Access Control List (ACL)
Yes
Remote Authentication Dial-In User Service (RADIUS)
Yes
Service Set Identifier (SSID) features
Multiple SSIDs
Ports & interfaces
Ethernet LAN (RJ-45) ports
1
Cabling technology
10/100Base-T(X)
Power
Power consumption (typical)
2.8 W
Power over Ethernet (PoE)
Yes
Input voltage
24 V
Design
Placement
Ceiling- Wall
Product colour
White
Reset button
Yes
LED indicators
Power
Certification
FCC- RoHS
Antenna
Antenna type
Internal
Antennas quantity
2
Antenna gain level (max)
4 dBi
Antenna direction type
Omni-directional
Technical details
Reset button
Yes
Receiver sensitivity
300M: -71dBm@10% PER 150M: -75dBm@10% PER 54M: -78dBm@10% PER 11M: -93dBm@8% PER 6M: -92dBm@10% PER 1M: -96dBm@8% PER
Operational conditions
Operating relative humidity (H-H)
10 - 90%
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-40 - 70 °C
Storage relative humidity (H-H)
5 - 90%
Indication
LED indicators
Power
Software
Access Control List (ACL)
Yes
Weight & dimensions
Width
189.4 mm
Depth
172.3 mm
Height
29.5 mm
Packaging data
Quick start guide
Yes
Mounting kit
Yes
PoE adapter included
Yes
Package type
Box
Cables included
AC
Number of products included
1 pc(s)
Packaging content
Quick start guide
Yes
Mounting kit
Yes
PoE adapter included
Yes
Package type
Box
Cables included
AC
Number of products included
1 pc(s)
TP-LINK EAP225 300 Mbit/s Power over Ethernet (PoE) White
