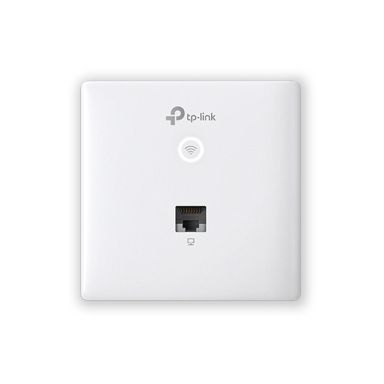

TP-Link Omada AC1200 Wireless MU-MIMO Gigabit Wall-Plate Access Point
In Stock
|
$77.82
$93.38 (Inc. VAT)
Data transmission
Ethernet LAN data rates
10,100,1000 Mbit/s
Maximum data transfer rate
1167 Mbit/s
Performance
2.4 GHz
Yes
5 GHz
Yes
Wi-Fi Multimedia (WMM)/(WME)
Yes
Automatic channel selection
Yes
Syslog
Yes
Reset button
Yes
Frequency band
2.4 - 5 GHz
Web-based management
Yes
VLAN support
Yes
Rate limiting
Yes
Quality of Service (QoS) support
Yes
Networking standards
IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3af, IEEE 802.3at
Ethernet LAN data rates
10,100,1000 Mbit/s
Maximum data transfer rate
1167 Mbit/s
MIMO type
Multi User MIMO
MIMO
Yes
Band steering
Yes
Compatible operating systems
Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10
Wireless LAN features
Frequency band
2.4 - 5 GHz
Network
Networking standards
IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3af, IEEE 802.3at
Management features
VLAN support
Yes
Rate limiting
Yes
Quality of Service (QoS) support
Yes
Syslog
Yes
Web-based management
Yes
Features
6 GHz
No
2.4 GHz
Yes
5 GHz
Yes
Wi-Fi Multimedia (WMM)/(WME)
Yes
Automatic channel selection
Yes
Frequency band
2.4 - 5 GHz
VLAN support
Yes
Rate limiting
Yes
Quality of Service (QoS) support
Yes
Networking standards
IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3af, IEEE 802.3at
Ethernet LAN data rates
10,100,1000 Mbit/s
Cabling technology
10/100/1000Base-T(X)
Maximum data transfer rate
1167 Mbit/s
Transmitting power (CE)
20 - 23 dBm
Automatic channel scanning
Yes
MIMO type
Multi User MIMO
MIMO
Yes
Band steering
Yes
Maximum data transfer rate (2.4 GHz)
300 Mbit/s
Maximum data transfer rate (5 GHz)
867 Mbit/s
Virtual LAN features
Port-based VLAN, VLAN mapping
BeamForming
Yes
Compatible operating systems
Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10
Security
Number of SSID supported
16
Security algorithms
64-bit WEP, 128-bit WEP, 152-bit WEP, SNMP, SNMPv2, WPA, WPA-PSK, WPA2-Enterprise, WPA2-PSK
MAC address filtering
Yes
Access Control List (ACL)
Yes
Service Set Identifier (SSID) features
Multiple SSIDs
Protocols
Secure File Transfer Protocol (SFTP) using SSH v2
Yes
Ports & interfaces
WAN connection
Ethernet (RJ-45)
Ethernet LAN (RJ-45) ports
1
Cabling technology
10/100/1000Base-T(X)
Power
Power consumption (max)
25.5 W
Power consumption (typical)
9 W
Power over Ethernet (PoE)
Yes
Design
Placement
Wall
Product colour
White
Reset button
Yes
LED indicators
Operation
Antenna
Antenna type
Internal
Antennas quantity
2
Antenna gain level (max)
3.6 dBi
Antenna features
Integrated antenna
Technical details
Reset button
Yes
Sustainability compliance
Yes
Sustainability certificates
CE, RoHS
Harmonized System (HS) code
85176990
Compliance certificates
CE, RoHS
Indication
LED indicators
Operation
Software
Automatic channel scanning
Yes
Access Control List (ACL)
Yes
Secure File Transfer Protocol (SFTP) using SSH v2
Yes
Weight & dimensions
Width
86.8 mm
Depth
86.8 mm
Height
30.2 mm
Package width
118 mm
Package depth
130 mm
Package height
47 mm
Package weight
210 g
Packaging data
Quick start guide
Yes
Mounting kit
Yes
Package width
118 mm
Package depth
130 mm
Package height
47 mm
Package weight
210 g
Number of products included
2 pc(s)
Packaging content
Quick start guide
Yes
Mounting kit
Yes
Number of products included
2 pc(s)
Operational conditions
Operating relative humidity (H-H)
10 - 90%
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-40 - 70 °C
Storage relative humidity (H-H)
5 - 90%
System requirements
Compatible operating systems
Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10
Sustainability
Sustainability compliance
Yes
Sustainability certificates
CE, RoHS
Logistics data
Harmonized System (HS) code
85176990
TP-Link Omada AC1200 Wireless MU-MIMO Gigabit Wall-Plate Access Point
