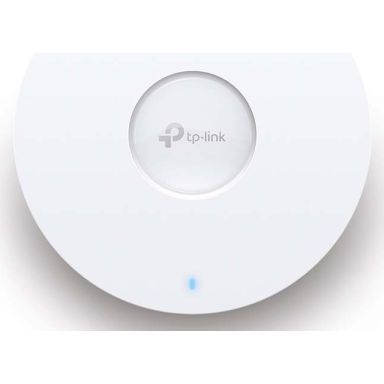

TP-Link AX1800 Ceiling Mount WiFi 6 Access Point
In Stock
|
$83.07
$99.68 (Inc. VAT)
Data transmission
Ethernet LAN data rates
10,100,1000 Mbit/s
Maximum data transfer rate
1800 Mbit/s
Performance
2.4 GHz
Yes
5 GHz
Yes
Automatic channel selection
Yes
Reset button
Yes
Spread spectrum method
OFDMA
Frequency band
2.4 - 5 GHz
Web-based management
Yes
Rate limiting
Yes
Networking standards
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Management platform
Omada
Ethernet LAN data rates
10,100,1000 Mbit/s
Certification
CE, FCC, RoHS
Maximum data transfer rate
1800 Mbit/s
MIMO type
Multi User MIMO
MIMO
Yes
Band steering
Yes
Airtime Fairness (ATF)
Yes
Compatible operating systems
Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows 11, Linux
Wireless LAN features
Frequency band
2.4 - 5 GHz
Network
Spread spectrum method
OFDMA
Networking standards
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Management features
Rate limiting
Yes
Web-based management
Yes
Management platform
Omada
Certificates
Certification
CE, FCC, RoHS
Features
2.4 GHz
Yes
5 GHz
Yes
Automatic channel selection
Yes
Spread spectrum method
OFDMA
Frequency band
2.4 - 5 GHz
Rate limiting
Yes
Networking standards
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Ethernet LAN data rates
10,100,1000 Mbit/s
Maximum data transfer rate
1800 Mbit/s
Transmitting power (FCC)
<25 dBm (2.4 GHz); <25 dBm (5 GHz)
Transmitting power (CE)
<20 dBm(2.4 GHz, EIRP); <23 dBm(5 GHz band1/2, EIRP); <25 dBm (5 GHz band3)
Automatic channel scanning
Yes
Adaptive bandwidth management
Yes
MIMO type
Multi User MIMO
MIMO
Yes
Band steering
Yes
Airtime Fairness (ATF)
Yes
Maximum data transfer rate (2.4 GHz)
574 Mbit/s
Maximum data transfer rate (5 GHz)
1201 Mbit/s
Virtual LAN features
SSID-based VLAN assignment
Compatible operating systems
Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows 11, Linux
Security
Number of SSID supported
16
Security algorithms
HTTPS, SNMP, SNMPv2, SNMPv3, WPA, WPA2, WPA3
Ports & interfaces
Ethernet LAN (RJ-45) ports
1
DC-in jack
Yes
Power
Power over Ethernet (PoE)
Yes
Design
Placement
Ceiling, Wall
Product colour
White
Reset button
Yes
LED indicators
Yes
Certification
CE, FCC, RoHS
Antenna
Antenna type
Internal
Antennas quantity
4
Antenna gain level (max)
5 dBi
Antenna direction type
Omni-directional
Technical details
Reset button
Yes
Indication
LED indicators
Yes
Software
Automatic channel scanning
Yes
Adaptive bandwidth management
Yes
Weight & dimensions
Width
160 mm
Depth
160 mm
Height
33.6 mm
Packaging data
Number of products included
1 pc(s)
Packaging content
Number of products included
1 pc(s)
Operational conditions
Operating relative humidity (H-H)
0 - 40%
Operating temperature (T-T)
10 - 90 °C
Storage temperature (T-T)
-40 - 70 °C
Storage relative humidity (H-H)
5 - 95%
System requirements
Compatible operating systems
Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows 11, Linux
TP-Link AX1800 Ceiling Mount WiFi 6 Access Point
