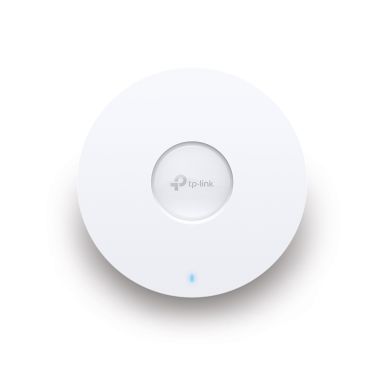

TP-Link Omada AX5400 Ceiling Mount WiFi 6 Access Point

Ethernet LAN data rates

2500 Mbit/s

Maximum data transfer rate

5400 Mbit/s

2.4 GHz

Yes

5 GHz

Yes

Wireless isolation

Yes

Automatic channel selection

Yes

Reset button

Yes

Firmware upgradeable

Yes

Frequency band

2.4 - 5 GHz

Number of users

250 user(s)

Web-based management

Yes

VLAN support

No

Rate limiting

Yes

Quality of Service (QoS) support

Yes

Networking standards

IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n

Ethernet LAN data rates

2500 Mbit/s

Certification

CE, FCC, RoHS

Maximum data transfer rate

5400 Mbit/s

MIMO type

Multi User MIMO

MIMO

Yes

Band steering

Yes

Remote Authentication Dial-In User Service (RADIUS)

Yes

Frequency band

2.4 - 5 GHz

Number of users

250 user(s)

Networking standards

IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n

VLAN support

No

Rate limiting

Yes

Quality of Service (QoS) support

Yes

Firmware upgradeable

Yes

Web-based management

Yes

Certification

CE, FCC, RoHS

6 GHz

No

2.4 GHz

Yes

5 GHz

Yes

Wireless isolation

Yes

Automatic channel selection

Yes

Frequency band

2.4 - 5 GHz

Number of users

250 user(s)

VLAN support

No

Rate limiting

Yes

Quality of Service (QoS) support

Yes

Networking standards

IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n

Ethernet LAN data rates

2500 Mbit/s

Maximum data transfer rate

5400 Mbit/s

Transmitting power (FCC)

<25 dBm (2.4 GHz); <28 dBm (5 GHz)

Transmitting power (CE)

<20 dBm(2.4 GHz, EIRP); <23 dBm(5 GHz, band1 & band2, EIRP); <30 dBm(5 GHz, band3, EIRP)

Automatic channel scanning

Yes

MIMO type

Multi User MIMO

MIMO

Yes

Band steering

Yes

Maximum data transfer rate (2.4 GHz)

574 Mbit/s

Maximum data transfer rate (5 GHz)

4804 Mbit/s

BeamForming

Yes

Number of SSID supported

16

Access Control List (ACL)

Yes

Remote Authentication Dial-In User Service (RADIUS)

Yes

Service Set Identifier (SSID) features

Multiple SSIDs

Ethernet LAN (RJ-45) ports

1

DC-in jack

Yes

Power over Ethernet (PoE)

Yes

Input current

1.5 A

International Protection (IP) code

IP67

Placement

Ceiling, Wall

Product colour

White

Reset button

Yes

LED indicators

Yes

Certification

CE, FCC, RoHS

Antenna type

Internal

Antennas quantity

6

Antenna gain level (max)

5 dBi

Antenna direction type

Omni-directional

Reset button

Yes

Firmware upgradeable

Yes

LED indicators

Yes

Automatic channel scanning

Yes

Access Control List (ACL)

Yes

Width

243 mm

Depth

243 mm

Height

64 mm

Number of products included

1 pc(s)

Number of products included

1 pc(s)
